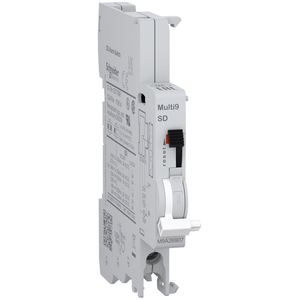

Schneider Electric M9A26909 Multi9 M9A Of/Sd+Of Top/Bt Wr 0.1-6A Aux
Schneider Electric
$80.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Auxiliary contact, Multi9 M9A, OF/SD+OF, 2 C/O, 100mA to 6A, 24VAC to 415VAC, 24VDC to 130VDC, top and bottom connection
- Reach Free Of Svhc:
- Yes
- Device Short Name:
- OF/SD+OF
- Ambient Air Temperature For Operation:
- -25-70 °C
- Reach Regulation:
- Free of Substances of Very High Concern above the threshold
- Wire Stripping Length:
- 9 mm
- Eu Rohs Directive:
- Compliant
- Product Or Component Type:
- double OC or fault contact
- Net Weight:
- 38 g
- Standards:
- EN/IEC 60947-5-1 || GB/T 14048.5 || GB/T 14048.17 || UL 1077 || UL 489 || CSA C22.2 No 0-10 || CSA C22.2 No 5-13 || CSA C22.2 No 235-04 || CSA C22.2 No 65-03
- [Ui] Rated Insulation Voltage:
- 500 V
- Connections - Terminals:
- screw clamp terminal top and bottom) 1 2.5-2.5 mm² - rigid || screw clamp terminal top and bottom) 2 1.5-1.5 mm² - rigid
- Mounting Support:
- DIN rail
- Color:
- Gray
- Height:
- 90 mm
- China Rohs Regulation:
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage:
- -40-85 °C
- Comb Busbar And Distribution Block Compatibility:
- NO
- Mercury Free:
- Yes
- Quality Labels:
- EAC || CCC
- Tropicalisation:
- 2
- Local Signalling:
- mechanical indicator
- Pollution Degree:
- 3
- Environmental Disclosure:
- ENVPEP2206016EN
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Tightening Torque:
- 1-1 N.m top and bottom
- Width:
- 9 mm
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 0.1-6 A at 24...250 V, AC 50/60 Hz || 0.1-6 A at 24...240 V, AC 50/60 Hz || 0.1-6 A at 24 V, DC || 0.1-2 A at 48 V, DC || 0.1-1.5 A at 60 V, DC || 0.1-1 A at 110 V, DC || 0.1-1 A at 130 V, DC || 0.1-3 A at 277 V, AC 50/60 Hz || 0.1-3 A at 415 V, AC 5
- Ip Degree Of Protection:
- IP20
- Range:
- Multi9
- Mounting Mode:
- clip-on
- Mounting Location:
- left side of circuit-breaker
- Rohs Exemption Information:
- Yes
- Depth:
- 68 mm
- Signal Contacts Composition:
- 2 C/O
- 9 Mm Pitches:
- 1
- Product Certifications:
- CE || UKCA || UL || CSA
- Circularity Profile:
- ENVEOLI2206016
