Schneider Electric M9A26917 Multi9 M9A Sd Bottom Wiring 2-100Ma Aux

Schneider Electric M9A26917 Multi9 M9A Sd Bottom Wiring 2-100Ma Aux

Schneider Electric
SKU:
M9A26917
|
UPC:
3606482129214
$97.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

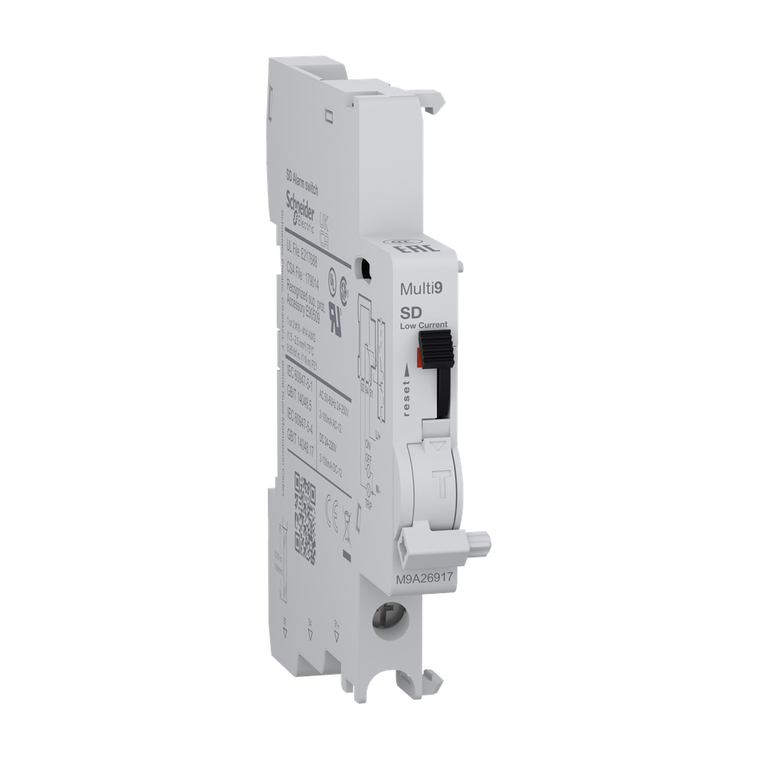

This Multi9 electrical auxiliary is a modular fault contact used as remote indication of tripping upon a fault of the associated device. The rated current (In) is from 2mA to 100mA with operating frequency of 50Hz to 60Hz at 24VAC to 250VAC, and from 2mA to 100mA at 24VDC to 220VDC. It has 1 position switch with contacts type 1 C/O. It is intended for new or renovated installation in small commercial, buildings, critical buildings, healthcare, industry, data center and infrastructures. This fault contact is compatible with Multi9 ranges such as C60BP, C60SP, C60 and N40. The SD is either used for device short name or compatibility code. The mechanical indicator is provided on the product for signalling (Local). It has a screw clamp terminal connection at bottom. The connection allows rigid copper cable. The cable cross section capacity is from 1mm² to 4mm². It has a screw clamp terminal connection at bottom. The connection allows flexible copper cable. The cable cross section capacity is from 0.5mm² to 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows rigid copper cables (2 cables). The cable cross section capacity is 2.5mm². It has a screw clamp terminal connection at bottom. The connection allows flexible with ferrule copper cables (2 cables). The cable cross section capacity is 1.5mm². The rated insulation voltage (Ui) is up to 500V. It has a rated impulse withstand voltage (Uimp) of 4kV. The width in 9mm pitches is 1. The dimensions are (W) 9mm x (H) 86mm x (D) 73mm. The product colour is white (RAL 9003). The pollution degree is 3. The level of tropicalisation is treatment 2. The tightening torque of connection is 1N.m (bottom) for PZ1 screwdriver type. According to IEC 60529 standard, the IP degree of protection is IP20. The operating temperature is from -25°C to +70°C. The storage temperature is from -40°C to +85°C. This product complies with EN/IEC 60947-5-1 and EN/IEC 60947-5-4 standards. This product is certified with CE, UL, CSA and UKCA standards.
Additional Information
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
[Ui] Rated Insulation Voltage:
500 V
Product Or Component Type:
fault contact
Tropicalisation:
2
Operating Mode:
daisy chain up to 100 devices
Height:
85 mm
Color:
Gray
Rohs Exemption Information:
Yes
[Uimp] Rated Impulse Withstand Voltage:
4 kV
Standards:
EN/IEC 60947-5-1 || EN/IEC 60947-5-4 || GB/T 14048.5 || GB/T 14048.17 || UL 1077 || UL 489 || CSA C22.2 No 0-10 || CSA C22.2 No 5-13 || CSA C22.2 No 235-04 || CSA C22.2 No 65-03
Device Short Name:
SD
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Local Signalling:
mechanical indicator
Depth:
68 mm
Sustainable Offer Status:
Green Premium product
Range:
Multi9
Comb Busbar And Distribution Block Compatibility:
top YES
Width:
9 mm
Net Weight:
29 g
Mounting Mode:
clip-on
Line Rated Current:
2-100 mA at 24...240 V, AC 50/60 Hz || 2-100 mA at 24 V, DC || 2-100 mA at 48 V, DC || 2-100 mA at 60 V, DC || 2-100 mA at 130 V, DC || 2-100 mA at 220 V, DC
Tightening Torque:
1-1 N.m bottom
Wire Stripping Length:
9 mm
9 Mm Pitches:
1
Environmental Disclosure:
ENVPEP2203012EN
Pollution Degree:
3
Quality Labels:
EAC || CCC
Connections - Terminals:
screw clamp terminal bottom) 1 2.5-2.5 mm² - rigid || screw clamp terminal bottom) 2 1.5-1.5 mm² - rigid
Eu Rohs Directive:
Compliant
Reach Free Of Svhc:
Yes
Mercury Free:
Yes
Mounting Location:
left side of circuit-breaker
Ambient Air Temperature For Operation:
-25-70 °C
Ambient Air Temperature For Storage:
-40-85 °C
Mounting Support:
DIN rail
Ip Degree Of Protection:
IP20
Circularity Profile:
N/A
Product Certifications:
CE || UKCA || UL || CSA
Signal Contacts Composition:
1 C/O
Datasheet:
View
