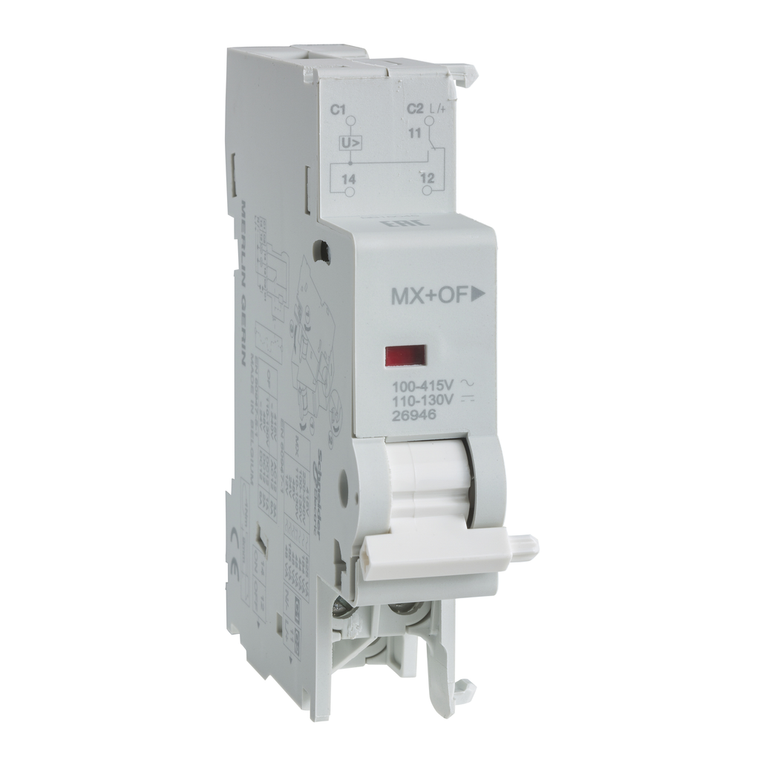

Schneider Electric M9A26946 Multi9 Mx+Of 110/415Vac-110/130Vdc

Schneider Electric M9A26946 Multi9 Mx+Of 110/415Vac-110/130Vdc

Schneider Electric
SKU:
M9A26946
|
UPC:
3606480639074
Availability:
Contact us to confirm availability and lead times.
$140.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Acti9 MX+OF electrical tripping auxiliary for is a shunt trip release device with open/close auxiliary contact. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. This device includes an open/close contact OF to indicated the position of the associated device. The width in 9mm pitches is 2. The Uc control circuit voltage is 110...415VAC or 110...130VDC . It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to + 50°C. The storage temperature is -40°C to + 85°C. This product complies with EN/IEC 60947-1 standards.
Additional Information
Height:
82.5 mm
Toxic Heavy Metal Free:
Yes
Ambient Air Temperature For Storage:
-40-85 °C
Reach Free Of Svhc:
Yes
Signal Contacts Composition:
1 C/O
Range:
Multi9
Pollution Degree:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mounting Support:
DIN rail
Net Weight:
0.065 kg
Connections - Terminals:
clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
Mercury Free:
Yes
Comb Busbar And Distribution Block Compatibility:
top YES
[Uc] Control Circuit Voltage:
110...415 V AC 50/60 Hz || 110...130 V DC
Product Or Component Type:
shunt trip release with OC contact
Local Signalling:
action indicator
Product Certifications:
CCC || UL || PCT || UR
Range Compatibility:
Multi 9 Multi9 C60 C60BP || Multi 9 Multi9 C60 C60BPR || Multi 9 Multi9 C60 C60SP || Multi 9 Multi9 GFP GFP || Multi 9 Multi9 C60H-DC C60H-DC
Mounting Mode:
fixed
9 Mm Pitches:
2
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1305024
Sustainable Offer Status:
Green Premium product
Standards:
EN/IEC 60947-1
Rohs Exemption Information:
Yes
Tightening Torque:
1-1 N.m bottom
Wire Stripping Length:
9 mm for bottom connection
Width:
18 mm
Device Short Name:
MX + OF
China Rohs Regulation:
Pro-active China RoHS declaration (out of China RoHS legal scope)
Ambient Air Temperature For Operation:
-25-50 °C
Depth:
68 mm
Circularity Profile:
N/A
Eu Rohs Directive:
Compliant
