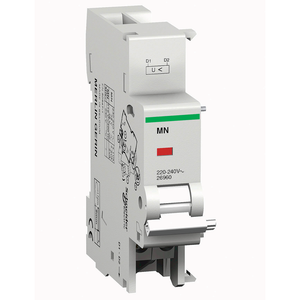

Schneider Electric M9A26959 Multi9 Mn 115Vac-48Vdc Undervoltage

Schneider Electric M9A26959 Multi9 Mn 115Vac-48Vdc Undervoltage

Schneider Electric
SKU:
M9A26959
|
UPC:
3606480639104
Availability:
Contact us to confirm availability and lead times.
$301.50
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 MN electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 115VAC or 48VDC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Circularity Profile:
ENVEOLI1305023
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Wire Stripping Length:
9 mm for bottom connection
Pollution Degree:
3
Sustainable Offer Status:
Green Premium product
Range:
Multi9
Tightening Torque:
1-1 N.m bottom
Range Compatibility:
Multi9 Multi9 C60 C60BP || Multi9 Multi9 C60 C60BPR || Multi9 Multi9 C60 C60SP || Multi9 Multi9 GFP GFP || Multi9 Multi9 C60H-DC C60H-DC
Height:
82.5 mm
Mounting Mode:
fixed
9 Mm Pitches:
2
Ambient Air Temperature For Storage:
-40-85 °C
Control Type:
standard
Rohs Exemption Information:
Yes
Standards:
EN 60947-2 || EN/IEC 60947-1
Environmental Disclosure:
ENVPEP1305023
Product Certifications:
UR || PCT || CSA || UL
[Uc] Control Circuit Voltage:
115 V AC 400 Hz || 48 V DC
Net Weight:
0.066 kg
Mounting Support:
DIN rail
Product Or Component Type:
undervoltage release
Ambient Air Temperature For Operation:
-25-50 °C
Width:
18 mm
Local Signalling:
action indicator
Device Short Name:
MN
Connections - Terminals:
clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
Eu Rohs Directive:
Compliant with Exemptions
Comb Busbar And Distribution Block Compatibility:
top YES
Depth:
68 mm
