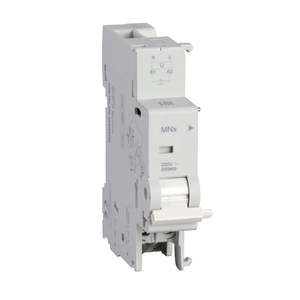

Schneider Electric M9A26969 Multi9 Mnx 230Vac Undervoltage Release
Schneider Electric
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 MNx electrical auxiliary is an undervoltage release. It is dedicated to Multi9 GFP, C60BP, C60SP, C60BPR. The width in 9mm pitches is 2. The Uc control circuit voltage is 230VAC. It can be mounted on a DIN rail for modular installation. The operating temperature is -25°C to 50°C. The storage temperature is -40°C to 85°C. This product complies with EN/IEC 60947-1 standard.
- Wire Stripping Length:
- 9 mm for bottom connection
- 9 Mm Pitches:
- 2
- Comb Busbar And Distribution Block Compatibility:
- top YES
- Sustainable Offer Status:
- Green Premium product
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Storage:
- -40-85 °C
- Device Short Name:
- MNx
- Environmental Disclosure:
- ENVPEP1305023
- Connections - Terminals:
- clamp terminal bottom) - 1 2.5-2.5 mm² AWG 14) - rigid || clamp terminal bottom) - 2 1.5-1.5 mm² AWG 16) - rigid
- [Uc] Control Circuit Voltage:
- 230 V AC 50/60 Hz
- Local Signalling:
- action indicator
- Control Type:
- with external feeding
- Circularity Profile:
- ENVEOLI1305023
- Ambient Air Temperature For Operation:
- -25-50 °C
- Depth:
- 68 mm
- Pollution Degree:
- 3
- Range:
- Multi9
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Standards:
- EN/IEC 60947-1
- Tightening Torque:
- 1-1 N.m bottom
- Net Weight:
- 0.073 kg
- Width:
- 18 mm
- Mercury Free:
- Yes
- Product Certifications:
- UR || UL || PCT || CSA
- Mounting Mode:
- fixed
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Product Or Component Type:
- undervoltage release
- Range Compatibility:
- Multi9 Multi9 C60 C60BP || Multi9 Multi9 C60 C60BPR || Multi9 Multi9 C60 C60SP || Multi9 Multi9 GFP GFP || Multi9 Multi9 C60H-DC C60H-DC
- Height:
- 82.5 mm
- Mounting Support:
- DIN rail
- Rohs Exemption Information:
- Yes
- Brochure:
- View
- Datasheet:
- View
