Schneider Electric

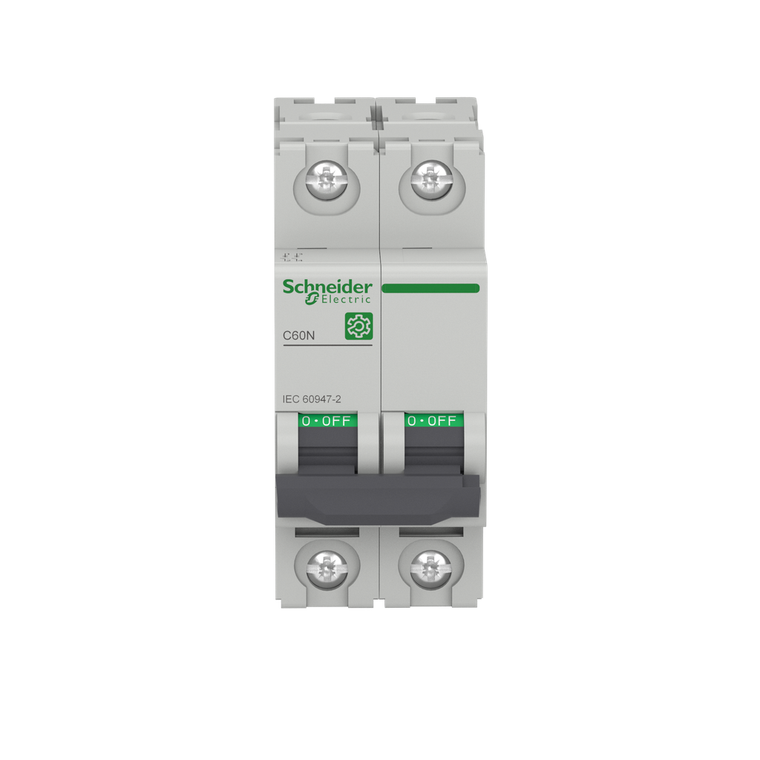

Schneider Electric M9F11201 Multi9 C60N 2P C 1A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F11201
UPC:
3.60648E+12
Condition:
New
Earth-Leakage Protection:
separate block
Width:
36 mm
Suitability For Isolation:
yes EN/IEC 60947-2
Heat Dissipation:
4.6-4.6 W 415 V - 1 A
Utilisation Category:
category A EN/IEC 60947-2
Line Rated Current:
1 A 50 °C EN/IEC 60947-2
Curve Code:
C
Contact Position Indicator:
yes
Network Type:
AC || DC
Local Signalling:
ON/OFF indication
Number Of Protected Poles:
2
Relative Humidity:
95-95 % 55-55 °C
Mechanical Durability:
20000 cycles
Ambient Air Temperature For Storage:
-40-80 °C
Depth:
72 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Net Weight:
0.24 kg
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Application:
distribution
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Product Certifications:
EAC || KC || CCC
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Wire Stripping Length:
14 mm for top or bottom connection
Mounting Mode:
clip-on
Device Short Name:
C60N
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Circularity Profile:
N/A
Tropicalisation:
2 IEC 60068-1
Product Or Component Type:
miniature circuit-breaker
Pollution Degree:
3 EN/IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Rohs Exemption Information:
Yes
Overvoltage Category:
IV
9 Mm Pitches:
4
Color:
Gray
Height:
81 mm
Standards:
EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Tightening Torque:
2-2 N.m top or bottom
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Product Name:
Multi9 C60
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Eu Rohs Directive:
Compliant with Exemptions
Electrical Durability:
10000 cycles
Range:
Multi9
Provision For Padlocking:
padlockable
Breaking Capacity:
20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Limitation Class:
3
Trip Unit Technology:
thermal-magnetic
Poles Description:
2P
Halogen Content Performance:
Halogen free product
Environmental Disclosure:
ENVPEP1304004EN
Ambient Air Temperature For Operation:
-30-70 °C
Network Frequency:
50/60 Hz
Mounting Support:
DIN rail
Brochure:
View
Datasheet:
View
$207.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 1A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
