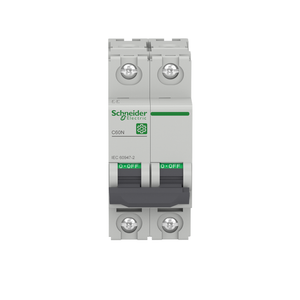

Schneider Electric M9F11240 Multi9 C60N 2P C 40A C 10Ka 415V Mcb

Schneider Electric M9F11240 Multi9 C60N 2P C 40A C 10Ka 415V Mcb

Schneider Electric
SKU:
M9F11240
|
UPC:
3606480576294
$213.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 40A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Color:
Gray
Electrical Durability:
10000 cycles
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Limitation Class:
3
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Ambient Air Temperature For Operation:
-30-70 °C
Product Certifications:
EAC || KC || CCC
Earth-Leakage Protection:
separate block
Suitability For Isolation:
yes EN/IEC 60947-2
Rohs Exemption Information:
Yes
9 Mm Pitches:
4
Contact Position Indicator:
yes
Width:
36 mm
Utilisation Category:
category A EN/IEC 60947-2
Device Application:
distribution
Circularity Profile:
N/A
Number Of Protected Poles:
2
Product Or Component Type:
miniature circuit-breaker
Control Type:
toggle
Wire Stripping Length:
14 mm for top or bottom connection
Overvoltage Category:
IV
Net Weight:
0.24 kg
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Sustainable Offer Status:
Green Premium product
Mounting Mode:
clip-on
Halogen Content Performance:
Halogen free product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
C60N
Curve Code:
C
Line Rated Current:
40 A 50 °C EN/IEC 60947-2
Height:
81 mm
Tightening Torque:
3.5-3.5 N.m top or bottom
Depth:
72 mm
Ambient Air Temperature For Storage:
-40-80 °C
Provision For Padlocking:
padlockable
Network Type:
DC || AC
Trip Unit Technology:
thermal-magnetic
Mounting Support:
DIN rail
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Connections - Terminals:
tunnel type terminal top or bottom) 1.5-35 mm² - rigid || tunnel type terminal top or bottom) 1.5-35 mm² - flexible || tunnel type terminal top or bottom) 1.5-35 mm² - flexible with ferrule
Network Frequency:
50/60 Hz
Product Name:
Multi9 C60
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Heat Dissipation:
8.6-8.6 W 415 V - 40 A
Local Signalling:
ON/OFF indication
Range:
Multi9
Pollution Degree:
3 EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Eu Rohs Directive:
Compliant with Exemptions
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Poles Description:
2P
Mechanical Durability:
20000 cycles
Tropicalisation:
2 IEC 60068-1
Breaking Capacity:
20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Relative Humidity:
95-95 % 55-55 °C
Standards:
EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
