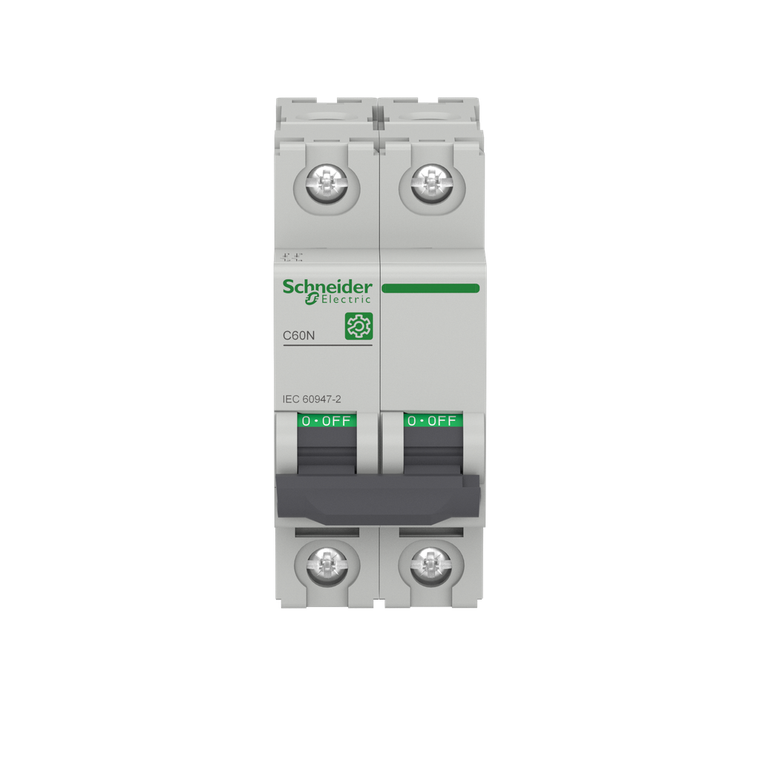

Schneider Electric M9F11263 Multi9 C60N 2P C 63A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F11263
UPC:
3606480576317
Condition:
New
Device Short Name:
C60N
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Mercury Free:
Yes
Device Application:
distribution
Wire Stripping Length:
14 mm for top or bottom connection
Electrical Durability:
10000 cycles
Height:
81 mm
Curve Code:
C
Utilisation Category:
category A EN/IEC 60947-2
Mechanical Durability:
20000 cycles
Contact Position Indicator:
yes
Product Or Component Type:
miniature circuit-breaker
9 Mm Pitches:
4
Net Weight:
0.24 kg
Standards:
EN/IEC 60947-2
Range:
Multi9
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1304004EN
Overvoltage Category:
IV
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Depth:
72 mm
Earth-Leakage Protection:
separate block
Tropicalisation:
2 IEC 60068-1
Provision For Padlocking:
padlockable
Control Type:
toggle
Limitation Class:
3
Local Signalling:
ON/OFF indication
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Breaking Capacity:
20 kA Icu <= 125 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Product Certifications:
EAC || CCC
Network Type:
DC || AC
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
clip-on
Connections - Terminals:
tunnel type terminal top or bottom) 1.5-35 mm² - rigid || tunnel type terminal top or bottom) 1.5-35 mm² - flexible || tunnel type terminal top or bottom) 1.5-35 mm² - flexible with ferrule
Rohs Exemption Information:
Yes
Ambient Air Temperature For Storage:
-40-80 °C
Poles Description:
2P
Circularity Profile:
N/A
Mounting Support:
DIN rail
Tightening Torque:
3.5-3.5 N.m top or bottom
Color:
Gray
Width:
36 mm
Network Frequency:
50/60 Hz
Suitability For Isolation:
yes EN/IEC 60947-2
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Line Rated Current:
63 A 50 °C EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Operation:
-30-70 °C
Heat Dissipation:
12.2-12.2 W 415 V - 63 A
Halogen Content Performance:
Halogen free product
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Relative Humidity:
95-95 % 55-55 °C
Product Name:
Multi9 C60
Number Of Protected Poles:
2
Pollution Degree:
3 EN/IEC 60947-2
  • Schneider Electric M9F11263 Multi9 C60N 2P C 63A 10Ka 415V Mcb
  • Schneider Electric M9F11263 Multi9 C60N 2P C 63A 10Ka 415V Mcb
$240.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 63A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
