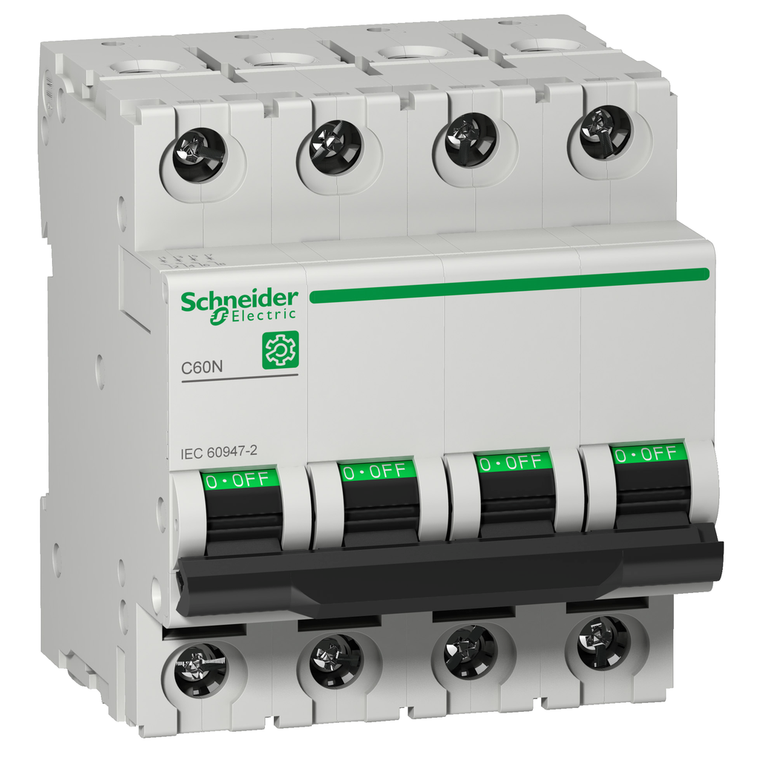

Schneider Electric M9F11403 Multi9 C60N 4P C 3A 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9F11403
UPC:
3.60648E+12
Condition:
New
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Circularity Profile:
N/A
Breaking Capacity:
40 kA Icu <= 250 V DC EN/IEC 60947-2 || 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 6 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Ambient Air Temperature For Operation:
-30-70 °C
Provision For Padlocking:
padlockable
Suitability For Isolation:
yes EN/IEC 60947-2
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Height:
81 mm
Mechanical Durability:
20000 cycles
Control Type:
toggle
Poles Description:
4P
9 Mm Pitches:
8
Color:
Gray
Contact Position Indicator:
yes
Pollution Degree:
3 EN/IEC 60947-2
Rohs Exemption Information:
Yes
Environmental Disclosure:
ENVPEP1304004EN
Trip Unit Technology:
thermal-magnetic
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Halogen Content Performance:
Halogen free product
Line Rated Current:
3 A 50 °C EN/IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Curve Code:
C
Network Frequency:
50/60 Hz
Width:
72 mm
Ambient Air Temperature For Storage:
-40-80 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Limitation Class:
3
Mounting Support:
DIN rail
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Standards:
EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Utilisation Category:
category A EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 250 V DC
Local Signalling:
ON/OFF indication
Product Or Component Type:
miniature circuit-breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Product Certifications:
EAC || CCC
Depth:
72 mm
Product Name:
Multi9 C60
Range:
Multi9
Tightening Torque:
2-2 N.m top or bottom
Network Type:
AC || DC
Electrical Durability:
10000 cycles
Wire Stripping Length:
14 mm for top or bottom connection
Mounting Mode:
clip-on
Device Short Name:
C60N
Net Weight:
0.48 kg
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 16 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 40 kA 100 % EN/IEC 60947-2 - <= 250 V DC
Heat Dissipation:
8.8-8.8 W 415 V - 3 A
Earth-Leakage Protection:
separate block
Relative Humidity:
95-95 % 55-55 °C
Tropicalisation:
2 IEC 60068-1
Number Of Protected Poles:
4
Device Application:
distribution
Sustainable Offer Status:
Green Premium product
Overvoltage Category:
IV
  • Schneider Electric M9F11403 Multi9 C60N 4P C 3A 10Ka 415V Mcb
  • Schneider Electric M9F11403 Multi9 C60N 4P C 3A 10Ka 415V Mcb
$396.00

Description

This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 3A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. The weight is 0.48kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
