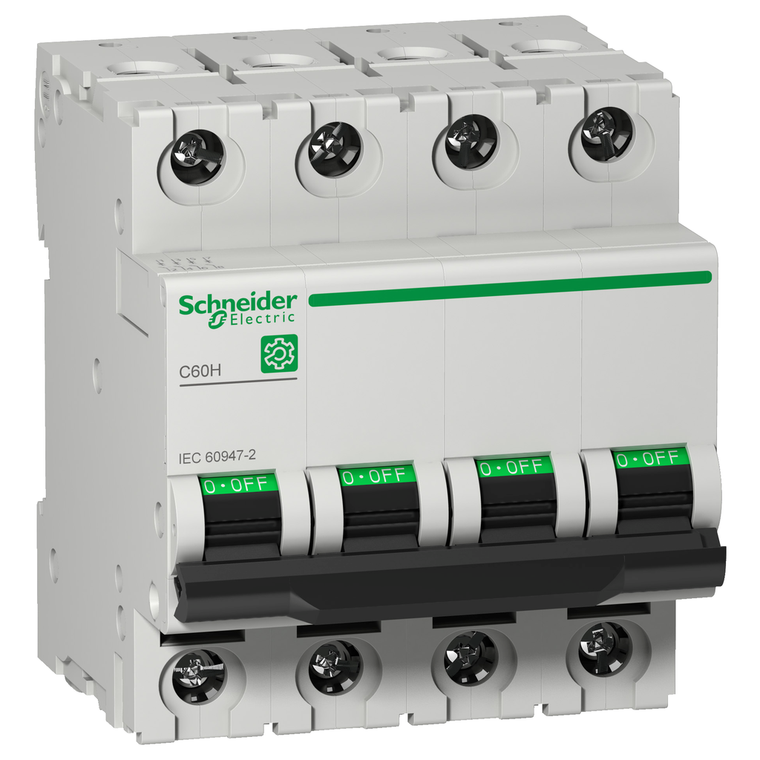

Schneider Electric M9F14425 Multi9 C60H 4P C 25A 15Ka 415V Mcb

Schneider Electric M9F14425 Multi9 C60H 4P C 25A 15Ka 415V Mcb

Schneider Electric
SKU:
M9F14425
|
UPC:
3606480577437
$513.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 25A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 15kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. The weight is 0.48kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Product Or Component Type:
miniature circuit-breaker
Relative Humidity:
95-95 % 55-55 °C
Ambient Air Temperature For Storage:
-40-80 °C
Mounting Support:
DIN rail
Utilisation Category:
category A EN/IEC 60947-2
Standards:
EN/IEC 60947-2
Breaking Capacity:
50 kA Icu <= 250 V DC EN/IEC 60947-2 || 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
Curve Code:
C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Device Short Name:
C60H
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Durability:
20000 cycles
Line Rated Current:
25 A 50 °C EN/IEC 60947-2
Product Certifications:
EAC || CCC
Halogen Content Performance:
Halogen free plastic parts & cables product
Mounting Mode:
clip-on
Electrical Durability:
10000 cycles
Network Type:
AC || DC
Poles Description:
4P
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Net Weight:
0.48 kg
Heat Dissipation:
12.4-12.4 W 415 V - 25 A
Circularity Profile:
N/A
Device Application:
distribution
Network Frequency:
50/60 Hz
Wire Stripping Length:
14 mm for top or bottom connection
Height:
81 mm
Local Signalling:
ON/OFF indication
Suitability For Isolation:
yes EN/IEC 60947-2
Product Name:
Multi9 C60
Tightening Torque:
2-2 N.m top or bottom
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Range:
Multi9
Rohs Exemption Information:
Yes
Trip Unit Technology:
thermal-magnetic
Color:
Gray
Contact Position Indicator:
yes
Sustainable Offer Status:
Green Premium product
Depth:
72 mm
Pollution Degree:
3 EN/IEC 60947-2
Number Of Protected Poles:
4
Control Type:
toggle
[Ics] Rated Service Breaking Capacity:
15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 50 kA 100 % EN/IEC 60947-2 - <= 250 V DC
9 Mm Pitches:
8
Width:
72 mm
Overvoltage Category:
IV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Provision For Padlocking:
padlockable
Ambient Air Temperature For Operation:
-30-70 °C
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 250 V DC
Environmental Disclosure:
ENVPEP1304004EN
Tropicalisation:
2 IEC 60068-1
Eu Rohs Directive:
Compliant with Exemptions
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Mercury Free:
Yes
Earth-Leakage Protection:
separate block
