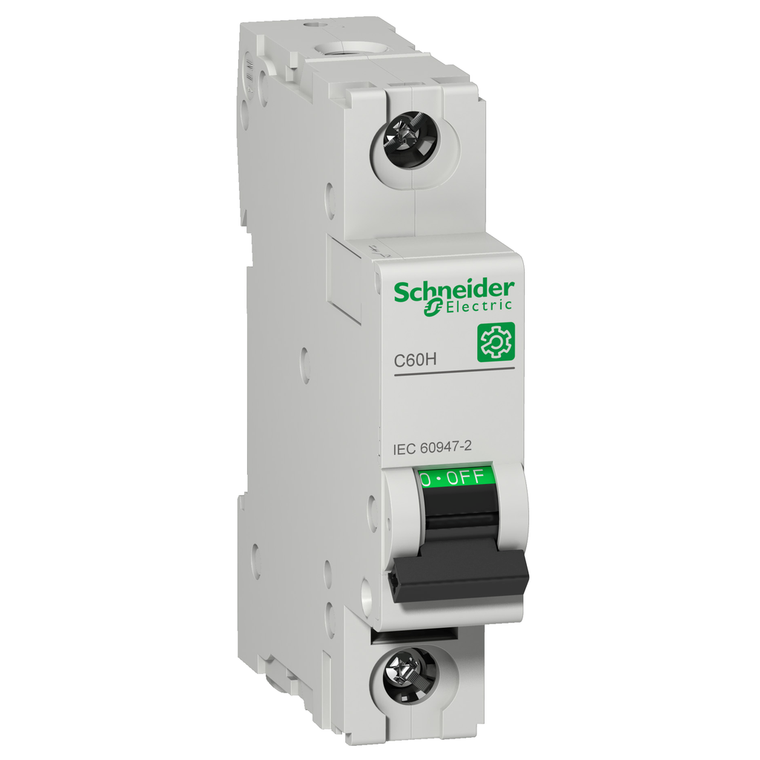

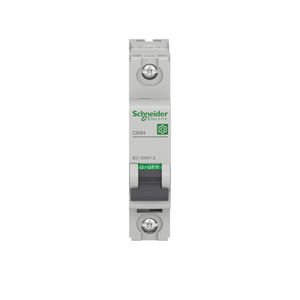

Schneider Electric M9F15120 Multi9 C60H 1P D 20A 15Ka 240V Mcb Pack of 12

Schneider Electric M9F15120 Multi9 C60H 1P D 20A 15Ka 240V Mcb Pack of 12

Schneider Electric
SKU:
M9F15120
|
UPC:
3.60648E+12
$2,250.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60H is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 20A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Standards:
EN/IEC 60947-2
Depth:
72 mm
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phase and neutral || 415 V AC 50/60 Hz between phase and neutral || <= 72 V DC
Circularity Profile:
N/A
Local Signalling:
ON/OFF indication
Line Rated Current:
20 A 50 °C EN/IEC 60947-2
Heat Dissipation:
3-3 W 240 V - 20 A
Ambient Air Temperature For Storage:
-40-80 °C
Trip Unit Technology:
thermal-magnetic
Pollution Degree:
3 EN/IEC 60947-2
Height:
81 mm
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Wire Stripping Length:
14 mm for top or bottom connection
Mechanical Durability:
20000 cycles
Tropicalisation:
2 IEC 60068-1
Control Type:
toggle
Range:
Multi9
Eu Rohs Directive:
Compliant with Exemptions
Network Frequency:
50/60 Hz
Earth-Leakage Protection:
separate block
Mounting Mode:
clip-on
Number Of Protected Poles:
1
Halogen Content Performance:
Halogen free plastic parts & cables product
Product Or Component Type:
miniature circuit-breaker
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Provision For Padlocking:
padlockable
Device Short Name:
C60H
Width:
18 mm
Contact Position Indicator:
yes
Sustainable Offer Status:
Green Premium product
Environmental Disclosure:
ENVPEP1304004EN
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Overvoltage Category:
IV
Poles Description:
1P
9 Mm Pitches:
2
Product Certifications:
EAC || CCC
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Product Name:
Multi9 C60
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Durability:
10000 cycles
Mounting Support:
DIN rail
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Color:
Gray
Network Type:
AC || DC
Utilisation Category:
category A EN/IEC 60947-2
Ambient Air Temperature For Operation:
-30-70 °C
[Ics] Rated Service Breaking Capacity:
7.5 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 1.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 20 kA 100 % EN/IEC 60947-2 - <= 72 V DC
Relative Humidity:
95-95 % 55-55 °C
Net Weight:
0.12 kg
Tightening Torque:
2-2 N.m top or bottom
Curve Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
20 kA Icu <= 72 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2 || 15 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
Device Application:
distribution
