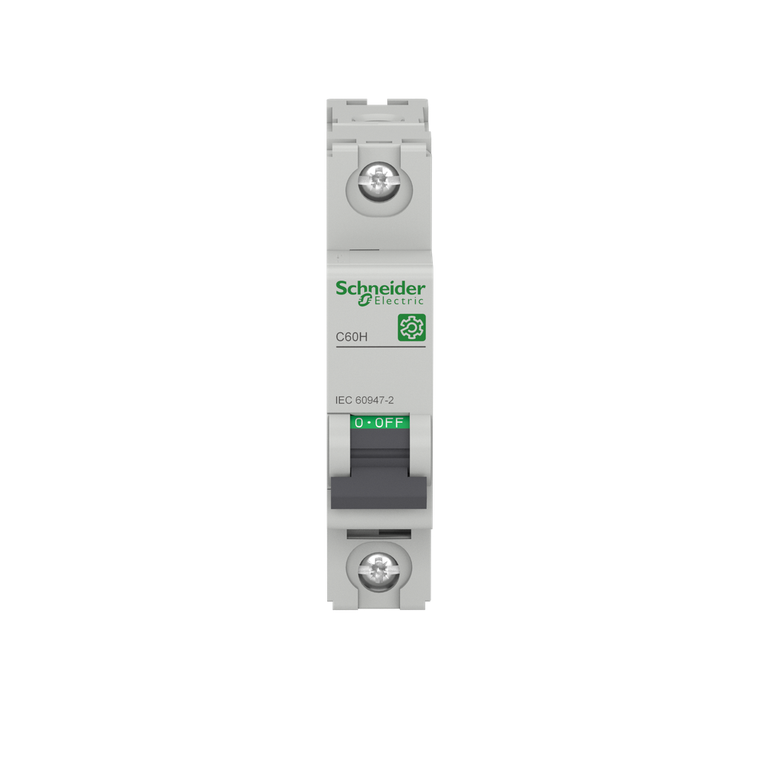

Schneider Electric M9F15320 Multi9 C60H 3P D 20A 15Ka 415V Mcb Pack of 4

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F15320 Multi9 C60H 3P D 20A 15Ka 415V Mcb Pack of 4

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F15320

UPC:

3606480577758

MPN:

Condition:

New

Range:

Multi9

Mounting Support:

DIN rail

Halogen Content Performance:

Halogen free plastic parts & cables product

Mounting Mode:

clip-on

Standards:

EN/IEC 60947-2

Line Rated Current:

20 A 50 °C EN/IEC 60947-2

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC

Product Name:

Multi9 C60

Earth-Leakage Protection:

separate block

Overvoltage Category:

IV

Ambient Air Temperature For Storage:

-40-80 °C

Control Type:

toggle

Height:

81 mm

Relative Humidity:

95-95 % 55-55 °C

Poles Description:

3P

Utilisation Category:

category A EN/IEC 60947-2

Provision For Padlocking:

padlockable

Network Type:

DC || AC

Contact Position Indicator:

yes

[Ics] Rated Service Breaking Capacity:

15 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 7.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 5 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 40 kA 100 % EN/IEC 60947-2 - <= 125 V DC

Rohs Exemption Information:

Yes

Pollution Degree:

3 EN/IEC 60947-2

Environmental Disclosure:

ENVPEP1304004EN

Depth:

72 mm

Network Frequency:

50/60 Hz

Product Or Component Type:

miniature circuit-breaker

Product Certifications:

EAC || CCC

Breaking Capacity:

40 kA Icu <= 125 V DC EN/IEC 60947-2 || 30 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 15 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 10 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2

Number Of Protected Poles:

3

Net Weight:

0.36 kg

Mercury Free:

Yes

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Trip Unit Technology:

thermal-magnetic

Tropicalisation:

2 IEC 60068-1

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Device Short Name:

C60H

Ambient Air Temperature For Operation:

-30-70 °C

Color:

Gray

Electrical Durability:

10000 cycles

Sustainable Offer Status:

Green Premium product

Curve Code:

D

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule

Device Application:

distribution

[Ui] Rated Insulation Voltage:

500 V AC 50/60 Hz EN/IEC 60947-2

Tightening Torque:

2-2 N.m top or bottom

9 Mm Pitches:

6

Heat Dissipation:

9-9 W 415 V - 20 A

Magnetic Tripping Limit:

12 x In +/- 20 % AC || 17 x In +/- 20 % DC

Local Signalling:

ON/OFF indication

Suitability For Isolation:

yes EN/IEC 60947-2

Wire Stripping Length:

14 mm for top or bottom connection

Circularity Profile:

N/A

Width:

54 mm

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mechanical Durability:

20000 cycles

Eu Rohs Directive:

Compliant with Exemptions
