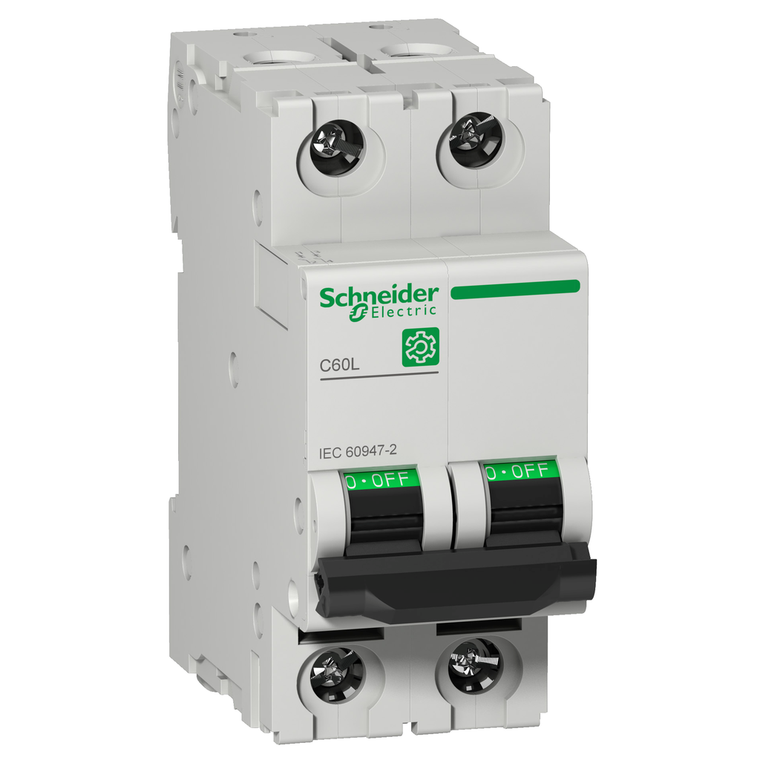

Schneider Electric M9F17216 Multi9 C60L 2P C 16A 25Ka 240 V Mcb

Schneider Electric M9F17216 Multi9 C60L 2P C 16A 25Ka 240 V Mcb

Schneider Electric
SKU:
M9F17216
|
UPC:
3606480578052
$332.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. The weight is 0.24kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Color:
Gray
Network Type:
AC || DC
Limitation Class:
3
Earth-Leakage Protection:
separate block
Utilisation Category:
category A EN/IEC 60947-2
Net Weight:
0.24 kg
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Curve Code:
C
Product Name:
Multi9 C60
Relative Humidity:
95-95 % 55-55 °C
Product Or Component Type:
miniature circuit-breaker
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Sustainable Offer Status:
Green Premium product
Tropicalisation:
2 IEC 60068-1
Eu Rohs Directive:
Compliant with Exemptions
Range:
Multi9
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Number Of Protected Poles:
2
Height:
81 mm
Ambient Air Temperature For Operation:
-30-70 °C
Product Certifications:
EAC || CCC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
clip-on
Width:
36 mm
Depth:
72 mm
Line Rated Current:
16 A 50 °C EN/IEC 60947-2
Circularity Profile:
N/A
Device Short Name:
C60L
9 Mm Pitches:
4
Rohs Exemption Information:
Yes
Mercury Free:
Yes
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Standards:
EN/IEC 60947-2
Ambient Air Temperature For Storage:
-40-80 °C
Provision For Padlocking:
padlockable
Poles Description:
2P
Heat Dissipation:
5-5 W 415 V - 16 A
Local Signalling:
ON/OFF indication
Contact Position Indicator:
yes
Device Application:
distribution
Breaking Capacity:
50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2 || 30 kA Icu <= 125 V DC 50/60 Hz EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Mechanical Durability:
20000 cycles
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Halogen Content Performance:
Halogen free plastic parts & cables product
Network Frequency:
50/60 Hz
Mounting Support:
DIN rail
Pollution Degree:
3 EN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Wire Stripping Length:
14 mm for top or bottom connection
[Ics] Rated Service Breaking Capacity:
25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 30 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Overvoltage Category:
IV
Tightening Torque:
2-2 N.m top or bottom
Control Type:
toggle
Electrical Durability:
10000 cycles
Suitability For Isolation:
yes EN/IEC 60947-2
