Schneider Electric

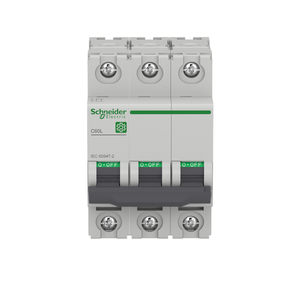

Schneider Electric M9F17304 Multi9 C60L 3P C 4A 25Ka 240 V Mcb Pack of 4

(No reviews yet) Write a Review
SKU:
M9F17304
UPC:
3.60648E+12
Condition:
New
Control Type:
toggle
Pollution Degree:
3 EN/IEC 60947-2
Earth-Leakage Protection:
separate block
Mounting Support:
DIN rail
Circularity Profile:
N/A
Range:
Multi9
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² - rigid || tunnel type terminal top or bottom) 1-25 mm² - flexible || tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule
Local Signalling:
ON/OFF indication
Product Certifications:
EAC || CCC
Network Type:
DC || AC
Device Application:
distribution
Heat Dissipation:
7.2-7.2 W 415 V - 4 A
Trip Unit Technology:
thermal-magnetic
Tropicalisation:
2 IEC 60068-1
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Width:
54 mm
Ambient Air Temperature For Operation:
-30-70 °C
Rohs Exemption Information:
Yes
Poles Description:
3P
Overvoltage Category:
IV
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relative Humidity:
95-95 % 55-55 °C
Network Frequency:
50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
50 kA Icu <= 125 V DC EN/IEC 60947-2 || 50 kA Icu 240 V AC 50/60 Hz between phases EN/IEC 60947-2 || 25 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2 || 20 kA Icu 440 V AC 50/60 Hz between phases EN/IEC 60947-2
9 Mm Pitches:
6
Standards:
EN/IEC 60947-2
Net Weight:
0.36 kg
Electrical Durability:
10000 cycles
Contact Position Indicator:
yes
Product Name:
Multi9 C60
Product Or Component Type:
miniature circuit-breaker
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Sustainable Offer Status:
Green Premium product
Mounting Mode:
clip-on
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz between phases || 415 V AC 50/60 Hz between phases || 440 V AC 50/60 Hz between phases || <= 125 V DC
Wire Stripping Length:
14 mm for top or bottom connection
Tightening Torque:
2-2 N.m top or bottom
Number Of Protected Poles:
3
Mechanical Durability:
20000 cycles
Utilisation Category:
category A EN/IEC 60947-2
Environmental Disclosure:
ENVPEP1304004EN
Line Rated Current:
4 A 50 °C EN/IEC 60947-2
Ambient Air Temperature For Storage:
-40-80 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Short Name:
C60L
Color:
Gray
Limitation Class:
3
Provision For Padlocking:
padlockable
Halogen Content Performance:
Halogen free plastic parts & cables product
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Curve Code:
C
Mercury Free:
Yes
Depth:
72 mm
Suitability For Isolation:
yes EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
[Ics] Rated Service Breaking Capacity:
25 kA 50 % EN/IEC 60947-2 - 240 V AC 50/60 Hz || 12.5 kA 50 % EN/IEC 60947-2 - 415 V AC 50/60 Hz || 10 kA 50 % EN/IEC 60947-2 - 440 V AC 50/60 Hz || 50 kA 100 % EN/IEC 60947-2 - <= 125 V DC
Height:
81 mm
Brochure:
View
Datasheet:
View
$2,874.00

Description

This Multi9 C60L is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 4A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 25kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. The weight is 0.36kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
