Schneider Electric M9F21125 Multi9 C60Sp 1P B 25A 10Ka 277V Ul1077

Schneider Electric M9F21125 Multi9 C60Sp 1P B 25A 10Ka 277V Ul1077

Schneider Electric
SKU:
M9F21125
|
UPC:
3.60648E+12
$101.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

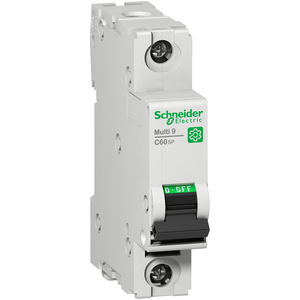

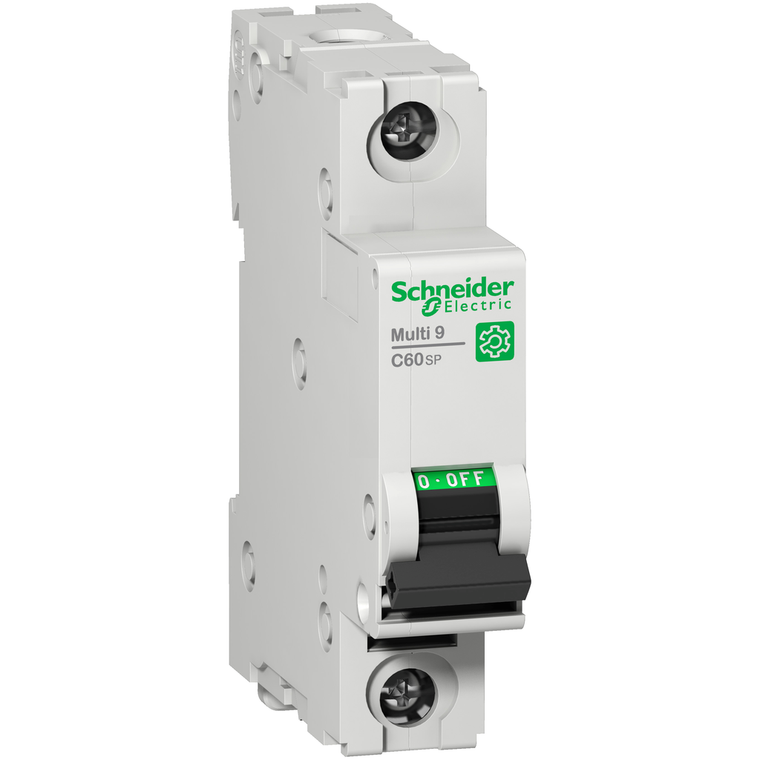

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 25A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Product Name:
Multi9 C60
Rohs Exemption Information:
Yes
Mechanical Durability:
20000 cycles
Provision For Padlocking:
padlockable
Local Signalling:
ON/OFF indication
Mounting Support:
DIN rail
Halogen Content Performance:
Halogen free product
Curve Code:
B
Pollution Degree:
3 EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Wire Stripping Length:
14 mm for top or bottom connection
Height:
81 mm
Range:
Multi9
Magnetic Tripping Limit:
4 x In +/- 20 % AC || 5.7 x In +/- 20 % DC
Width:
18 mm
9 Mm Pitches:
2
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Circularity Profile:
N/A
Product Certifications:
IEC || CCC || UR || CSA
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Line Rated Current:
25 A 25 °C EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Product Or Component Type:
miniature circuit-breaker
Network Type:
AC || DC
Poles Description:
1P
Color:
Gray
Breaking Capacity:
10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V
Mounting Mode:
clip-on
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
Tropicalisation:
2 IEC 60068-1
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Earth-Leakage Protection:
without
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Number Of Protected Poles:
1
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Control Type:
toggle
Trip Unit Technology:
thermal-magnetic
Ambient Air Temperature For Storage:
-40-80 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Electrical Durability:
10000 cycles
Operating Altitude:
0...6561.68 ft (0...2000 m)
Ambient Air Temperature For Operation:
-30-70 °C
Device Application:
distribution
Depth:
72 mm
Device Short Name:
C60SP
Tightening Torque:
2.5-2.5 N.m top or bottom
Mercury Free:
Yes
Environmental Disclosure:
ENVPEP1304004EN
Relative Humidity:
95-95 % 55-55 °C
Contact Position Indicator:
yes
Brochure:
View
Datasheet:
View
