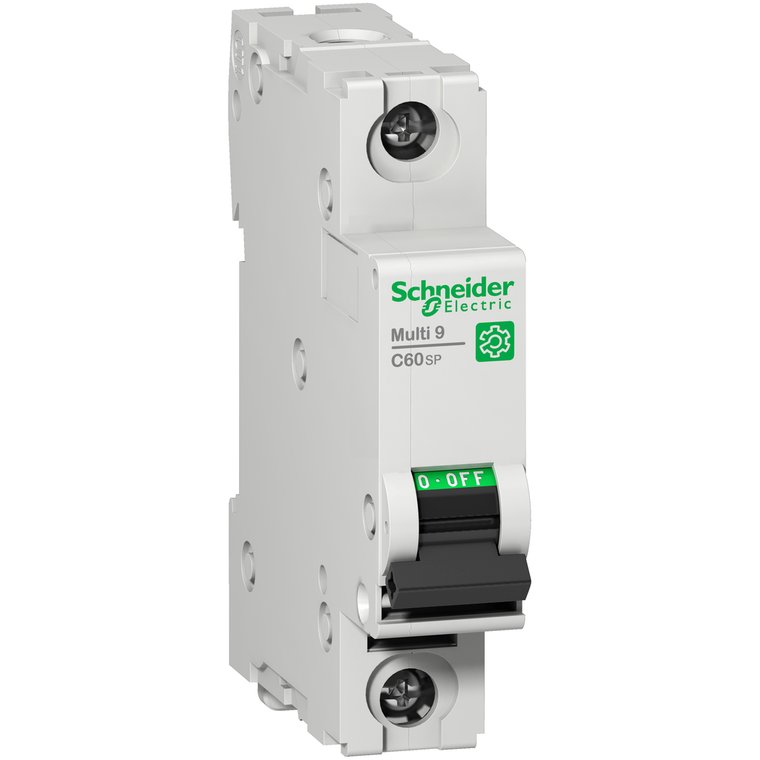

Schneider Electric M9F21132 Multi9 C60Sp 1P B 32A 10Ka 277V Ul1077
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Breaking Capacity:
- 10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V
- Provision For Padlocking:
- padlockable
- Range:
- Multi9
- Mechanical Durability:
- 20000 cycles
- Control Type:
- toggle
- Electrical Durability:
- 10000 cycles
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - flexible
- Contact Position Indicator:
- yes
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
- Ambient Air Temperature For Operation:
- -30-70 °C
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Tropicalisation:
- 2 IEC 60068-1
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Earth-Leakage Protection:
- without
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
- Local Signalling:
- ON/OFF indication
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-80 °C
- Trip Unit Technology:
- thermal-magnetic
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Product Name:
- Multi9 C60
- Poles Description:
- 1P
- Eu Rohs Directive:
- Compliant with Exemptions
- Color:
- Gray
- Device Short Name:
- C60SP
- Halogen Content Performance:
- Halogen free product
- Network Type:
- AC || DC
- Environmental Disclosure:
- ENVPEP1304004EN
- Relative Humidity:
- 95-95 % 55-55 °C
- Curve Code:
- B
- Line Rated Current:
- 32 A 25 °C EN/IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Magnetic Tripping Limit:
- 4 x In +/- 20 % AC || 5.7 x In +/- 20 % DC
- Rohs Exemption Information:
- Yes
- Number Of Protected Poles:
- 1
- Sustainable Offer Status:
- Green Premium product
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Device Application:
- distribution
- Depth:
- 72 mm
- Height:
- 81 mm
- Product Certifications:
- IEC || CCC || UR || CSA
- 9 Mm Pitches:
- 2
- Width:
- 18 mm
- Mounting Mode:
- clip-on
- Mounting Support:
- DIN rail
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- Product Or Component Type:
- miniature circuit-breaker
