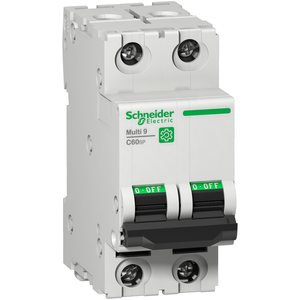

Schneider Electric M9F21204 Multi9 C60Sp 2P B 4A 10Ka 480Y/277V Mcb

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F21204 Multi9 C60Sp 2P B 4A 10Ka 480Y/277V Mcb

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F21204

UPC:

3.60648E+12

MPN:

Condition:

New

Trip Unit Technology:

thermal-magnetic

Mounting Support:

DIN rail

Product Certifications:

IEC || CCC || UR || CSA

Device Short Name:

C60SP

Control Type:

toggle

Earth-Leakage Protection:

without

Number Of Protected Poles:

2

Tropicalisation:

2 IEC 60068-1

Provision For Padlocking:

padlockable

[Ics] Rated Service Breaking Capacity:

4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Local Signalling:

ON/OFF indication

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz

Wire Stripping Length:

14 mm for top or bottom connection

Contact Position Indicator:

yes

Width:

36 mm

Pollution Degree:

3 EN/IEC 60947-2

Mounting Mode:

clip-on

Relative Humidity:

95-95 % 55-55 °C

Depth:

72 mm

Device Application:

distribution

Magnetic Tripping Limit:

4 x In +/- 20 % AC || 5.7 x In +/- 20 % DC

Environmental Disclosure:

ENVPEP1304004EN

Tightening Torque:

2.5-2.5 N.m top or bottom

Eu Rohs Directive:

Compliant with Exemptions

Range:

Multi9

Network Type:

DC || AC

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Curve Code:

B

9 Mm Pitches:

4

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Electrical Durability:

10000 cycles

Ambient Air Temperature For Storage:

-40-80 °C

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Height:

81 mm

Mercury Free:

Yes

Suitability For Isolation:

yes EN/IEC 60947-2

Color:

Gray

Product Or Component Type:

miniature circuit-breaker

Operating Altitude:

0...6561.68 ft (0...2000 m)

Product Name:

Multi9 C60

Mechanical Durability:

20000 cycles

Breaking Capacity:

14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 125 V DC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 10 kA AIR 125 V DC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2

Halogen Content Performance:

Halogen free product

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Poles Description:

2P

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235

Line Rated Current:

4 A 25 °C EN/IEC 60947-2

Circularity Profile:

N/A

Ambient Air Temperature For Operation:

-30-70 °C

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible

Rohs Exemption Information:

Yes

Brochure:

View

Datasheet:

View
