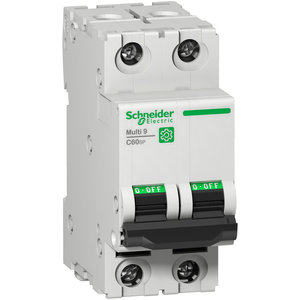

Schneider Electric M9F21216 Multi9 C60Sp 2P B 16A 10Ka 480Y/277V Mcb

Schneider Electric M9F21216 Multi9 C60Sp 2P B 16A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F21216
|
UPC:
3606481167750
$218.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 16A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Circularity Profile:
N/A
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Width:
36 mm
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Network Type:
AC || DC
Ambient Air Temperature For Operation:
-30-70 °C
Product Or Component Type:
miniature circuit-breaker
Poles Description:
2P
Electrical Durability:
10000 cycles
Trip Unit Technology:
thermal-magnetic
Mercury Free:
Yes
Number Of Protected Poles:
2
Line Rated Current:
16 A 25 °C EN/IEC 60947-2
Operating Altitude:
0...6561.68 ft (0...2000 m)
Provision For Padlocking:
padlockable
Mechanical Durability:
20000 cycles
Pollution Degree:
3 EN/IEC 60947-2
Ambient Air Temperature For Storage:
-40-80 °C
Eu Rohs Directive:
Compliant with Exemptions
Range:
Multi9
Device Short Name:
C60SP
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Rohs Exemption Information:
Yes
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Wire Stripping Length:
14 mm for top or bottom connection
Contact Position Indicator:
yes
Relative Humidity:
95-95 % 55-55 °C
Suitability For Isolation:
yes EN/IEC 60947-2
Tightening Torque:
2.5-2.5 N.m top or bottom
Local Signalling:
ON/OFF indication
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Control Type:
toggle
Device Application:
distribution
Earth-Leakage Protection:
without
Tropicalisation:
2 IEC 60068-1
Halogen Content Performance:
Halogen free product
Product Certifications:
IEC || CCC || UR || CSA
Depth:
72 mm
9 Mm Pitches:
4
Color:
Gray
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Mounting Support:
DIN rail
Curve Code:
B
Environmental Disclosure:
ENVPEP1304004EN
Height:
81 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Magnetic Tripping Limit:
4 x In +/- 20 % AC || 5.7 x In +/- 20 % DC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 125 V DC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 10 kA AIR 125 V DC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Mounting Mode:
clip-on
Product Name:
Multi9 C60
Brochure:
View
Datasheet:
View
