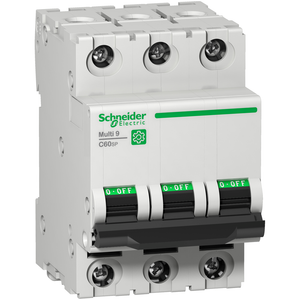

Schneider Electric M9F21320 Multi9 C60Sp 3P B 20A 10Ka 480Y/277V Mcb

Schneider Electric M9F21320 Multi9 C60Sp 3P B 20A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F21320
|
UPC:
3606481167910
$315.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 20A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Operating Altitude:
0...6561.68 ft (0...2000 m)
Curve Code:
B
Mercury Free:
Yes
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Line Rated Current:
20 A 25 °C EN/IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Number Of Protected Poles:
3
Poles Description:
3P
Pollution Degree:
3 EN/IEC 60947-2
Device Application:
distribution
Local Signalling:
ON/OFF indication
Environmental Disclosure:
ENVPEP1304004EN
Relative Humidity:
95-95 % 55-55 °C
Halogen Content Performance:
Halogen free product
Suitability For Isolation:
yes EN/IEC 60947-2
Product Name:
Multi9 C60
Ambient Air Temperature For Storage:
-40-80 °C
Magnetic Tripping Limit:
4 x In +/- 20 % AC
Control Type:
toggle
9 Mm Pitches:
6
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Mounting Support:
DIN rail
Mechanical Durability:
20000 cycles
Product Certifications:
IEC || CCC || UR || CSA
Contact Position Indicator:
yes
Range:
Multi9
Provision For Padlocking:
padlockable
Width:
54 mm
Earth-Leakage Protection:
without
Rohs Exemption Information:
Yes
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Electrical Durability:
10000 cycles
Tropicalisation:
2 IEC 60068-1
Wire Stripping Length:
14 mm for top or bottom connection
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Depth:
72 mm
Product Or Component Type:
miniature circuit-breaker
Circularity Profile:
N/A
Tightening Torque:
2.5-2.5 N.m top or bottom
Network Type:
AC
Ambient Air Temperature For Operation:
-30-70 °C
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Color:
Gray
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
clip-on
Height:
81 mm
Device Short Name:
C60SP
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
