Schneider Electric M9F21325 Multi9 C60Sp 3P B 25A 10Ka 480Y/277V Mcb
Schneider Electric
$315.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

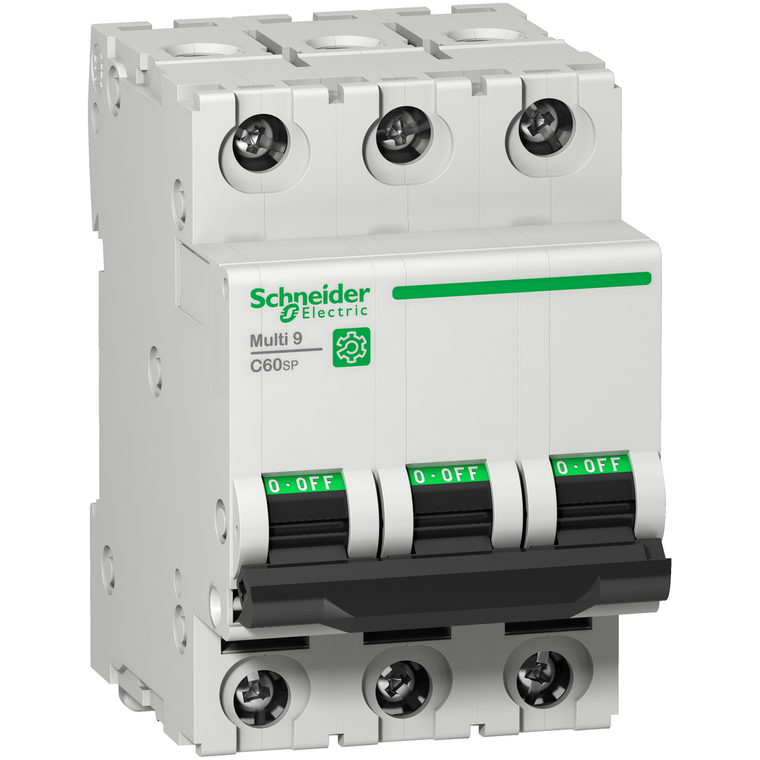

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 25A rated current and B tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Circularity Profile:
- N/A
- Relative Humidity:
- 95-95 % 55-55 °C
- Product Certifications:
- IEC || CCC || UR || CSA
- Magnetic Tripping Limit:
- 4 x In +/- 20 % AC
- Rohs Exemption Information:
- Yes
- Product Or Component Type:
- miniature circuit-breaker
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Wire Stripping Length:
- 14 mm for top or bottom connection
- 9 Mm Pitches:
- 6
- Control Type:
- toggle
- Poles Description:
- 3P
- Local Signalling:
- ON/OFF indication
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Range:
- Multi9
- Width:
- 54 mm
- Device Short Name:
- C60SP
- Curve Code:
- B
- Mounting Mode:
- clip-on
- Eu Rohs Directive:
- Compliant with Exemptions
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Trip Unit Technology:
- thermal-magnetic
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Depth:
- 72 mm
- Halogen Content Performance:
- Halogen free product
- Mercury Free:
- Yes
- Earth-Leakage Protection:
- without
- Tropicalisation:
- 2 IEC 60068-1
- Product Name:
- Multi9 C60
- Color:
- Gray
- Height:
- 81 mm
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Mechanical Durability:
- 20000 cycles
- Breaking Capacity:
- 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
- Environmental Disclosure:
- ENVPEP1304004EN
- Line Rated Current:
- 25 A 25 °C EN/IEC 60947-2
- Ambient Air Temperature For Storage:
- -40-80 °C
- Mounting Support:
- DIN rail
- Sustainable Offer Status:
- Green Premium product
- Contact Position Indicator:
- yes
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Pollution Degree:
- 3 EN/IEC 60947-2
- Provision For Padlocking:
- padlockable
- Number Of Protected Poles:
- 3
- Ambient Air Temperature For Operation:
- -30-70 °C
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Network Type:
- AC
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Electrical Durability:
- 10000 cycles
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
