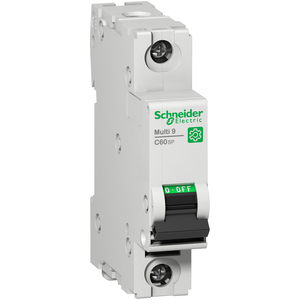

Schneider Electric M9F22132 Multi9 C60Sp 1P C 32A 10Ka 277V Ul1077

Schneider Electric M9F22132 Multi9 C60Sp 1P C 32A 10Ka 277V Ul1077

Schneider Electric
SKU:
M9F22132
|
UPC:
3606481168153
$101.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
Depth:
72 mm
Product Or Component Type:
miniature circuit-breaker
Halogen Content Performance:
Halogen free product
Device Application:
distribution
Mechanical Durability:
20000 cycles
Device Short Name:
C60SP
Environmental Disclosure:
ENVPEP1304004EN
Height:
81 mm
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Tightening Torque:
3.5-3.5 N.m top or bottom
Product Certifications:
IEC || CCC || UR || CSA
Color:
Gray
Ambient Air Temperature For Operation:
-30-70 °C
Tropicalisation:
2 IEC 60068-1
Line Rated Current:
32 A 25 °C EN/IEC 60947-2
Circularity Profile:
N/A
Mounting Support:
DIN rail
Local Signalling:
ON/OFF indication
Relative Humidity:
95-95 % 55-55 °C
Sustainable Offer Status:
Green Premium product
Contact Position Indicator:
yes
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Ambient Air Temperature For Storage:
-40-80 °C
Pollution Degree:
3 EN/IEC 60947-2
Earth-Leakage Protection:
without
Suitability For Isolation:
yes EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Range:
Multi9
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - flexible
Network Type:
AC || DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
18 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Mounting Mode:
clip-on
Trip Unit Technology:
thermal-magnetic
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Rohs Exemption Information:
Yes
Number Of Protected Poles:
1
Provision For Padlocking:
padlockable
9 Mm Pitches:
2
Curve Code:
C
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Breaking Capacity:
10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V
Poles Description:
1P
Electrical Durability:
10000 cycles
Eu Rohs Directive:
Compliant with Exemptions
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Product Name:
Multi9 C60
Wire Stripping Length:
14 mm for top or bottom connection
Operating Altitude:
0...6561.68 ft (0...2000 m)
