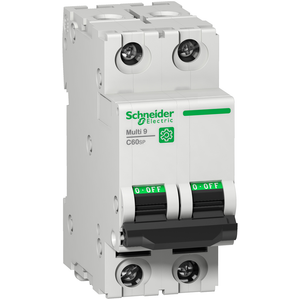

Schneider Electric M9F22250 Multi9 C60Sp 2P C 50A 5Ka 480Y/277V Mcb
Schneider Electric
$240.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 50A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Halogen Content Performance:
- Halogen free product
- Sustainable Offer Status:
- Green Premium product
- Relative Humidity:
- 95-95 % 55-55 °C
- Device Short Name:
- C60SP
- Curve Code:
- C
- Depth:
- 72 mm
- Environmental Disclosure:
- ENVPEP1304004EN
- Ambient Air Temperature For Operation:
- -30-70 °C
- Breaking Capacity:
- 10 kA AIR 240 V AC UL 1077 || 10 kA AIR 240 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA
- Number Of Protected Poles:
- 2
- Contact Position Indicator:
- yes
- Width:
- 36 mm
- Mounting Support:
- DIN rail
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Range:
- Multi9
- Rohs Exemption Information:
- Yes
- Pollution Degree:
- 3 EN/IEC 60947-2
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Circularity Profile:
- N/A
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
- Product Or Component Type:
- miniature circuit-breaker
- Line Rated Current:
- 50 A 25 °C EN/IEC 60947-2
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Tropicalisation:
- 2 IEC 60068-1
- Provision For Padlocking:
- padlockable
- Electrical Durability:
- 10000 cycles
- Product Name:
- Multi9 C60
- Earth-Leakage Protection:
- without
- Mercury Free:
- Yes
- 9 Mm Pitches:
- 4
- Height:
- 81 mm
- Mechanical Durability:
- 20000 cycles
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Color:
- Gray
- Mounting Mode:
- clip-on
- Device Application:
- distribution
- Product Certifications:
- IEC || CCC || UR || CSA
- Ambient Air Temperature For Storage:
- -40-80 °C
- Poles Description:
- 2P
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Eu Rohs Directive:
- Compliant with Exemptions
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Trip Unit Technology:
- thermal-magnetic
- Local Signalling:
- ON/OFF indication
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Network Type:
- AC
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Brochure:
- View
- Datasheet:
- View
