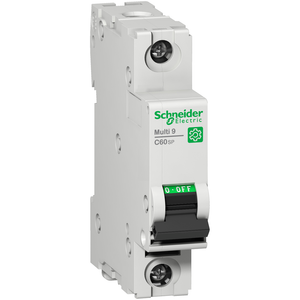

Schneider Electric M9F23102 Multi9 C60Sp 1P D 2A 10Ka 277V Ul1077

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F23102

UPC:

3606481168870

MPN:

Condition:

New

Earth-Leakage Protection:

without

Device Application:

distribution

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

IEC || CCC || UR || CSA

Color:

Gray

Product Name:

Multi9 C60

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235

Mercury Free:

Yes

Curve Code:

D

Poles Description:

1P

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Control Type:

toggle

Pollution Degree:

3 EN/IEC 60947-2

Mechanical Durability:

20000 cycles

Trip Unit Technology:

thermal-magnetic

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Mounting Support:

DIN rail

Sustainable Offer Status:

Green Premium product

Suitability For Isolation:

yes EN/IEC 60947-2

Rohs Exemption Information:

Yes

Electrical Durability:

10000 cycles

Mounting Mode:

clip-on

Range:

Multi9

Width:

18 mm

Magnetic Tripping Limit:

12 x In +/- 20 % AC || 17 x In +/- 20 % DC

Number Of Protected Poles:

1

Operating Altitude:

0...6561.68 ft (0...2000 m)

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible

Ambient Air Temperature For Operation:

-30-70 °C

9 Mm Pitches:

2

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Circularity Profile:

N/A

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Relative Humidity:

95-95 % 55-55 °C

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC

Network Type:

DC || AC

Provision For Padlocking:

padlockable

Ambient Air Temperature For Storage:

-40-80 °C

Device Short Name:

C60SP

Product Or Component Type:

miniature circuit-breaker

Contact Position Indicator:

yes

Height:

81 mm

Tightening Torque:

2.5-2.5 N.m top or bottom

[Ics] Rated Service Breaking Capacity:

2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC

Wire Stripping Length:

14 mm for top or bottom connection

Eu Rohs Directive:

Compliant with Exemptions

Depth:

72 mm

Halogen Content Performance:

Halogen free product

Breaking Capacity:

10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Line Rated Current:

2 A 25 °C EN/IEC 60947-2

Environmental Disclosure:

ENVPEP1304004EN

Local Signalling:

ON/OFF indication

Tropicalisation:

2 IEC 60068-1
