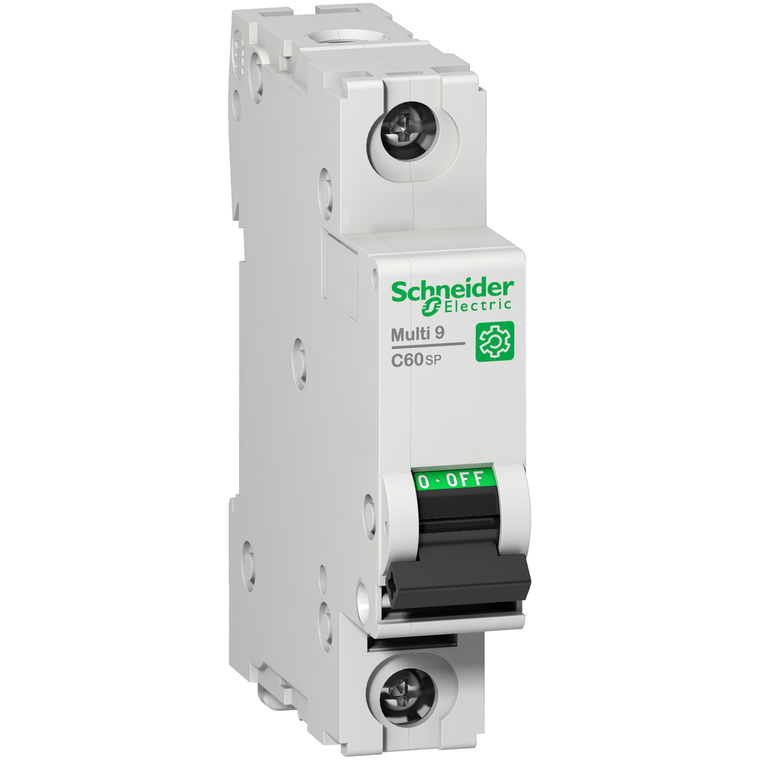

Schneider Electric M9F23104 Multi9 C60Sp 1P D 4A 10Ka 277V Ul1077

(No reviews yet) Write a Review
SKU:
M9F23104
UPC:
3.60648E+12
Condition:
New
Control Type:
toggle
Line Rated Current:
4 A 25 °C EN/IEC 60947-2
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
Sustainable Offer Status:
Green Premium product
Tightening Torque:
2.5-2.5 N.m top or bottom
Electrical Durability:
10000 cycles
Device Application:
distribution
Range:
Multi9
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Environmental Disclosure:
ENVPEP1304004EN
Provision For Padlocking:
padlockable
Circularity Profile:
N/A
Relative Humidity:
95-95 % 55-55 °C
Tropicalisation:
2 IEC 60068-1
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Network Type:
AC || DC
Mechanical Durability:
20000 cycles
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Halogen Content Performance:
Halogen free product
Rohs Exemption Information:
Yes
Width:
18 mm
Ambient Air Temperature For Storage:
-40-80 °C
Product Certifications:
IEC || CCC || UR || CSA
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Depth:
72 mm
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Local Signalling:
ON/OFF indication
Breaking Capacity:
10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V
Poles Description:
1P
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Height:
81 mm
Trip Unit Technology:
thermal-magnetic
Earth-Leakage Protection:
without
Device Short Name:
C60SP
Product Name:
Multi9 C60
Suitability For Isolation:
yes EN/IEC 60947-2
Product Or Component Type:
miniature circuit-breaker
Mounting Support:
DIN rail
Color:
Gray
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Curve Code:
D
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Protected Poles:
1
Wire Stripping Length:
14 mm for top or bottom connection
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Mounting Mode:
clip-on
Pollution Degree:
3 EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Operating Altitude:
0...6561.68 ft (0...2000 m)
Mercury Free:
Yes
Ambient Air Temperature For Operation:
-30-70 °C
9 Mm Pitches:
2
Contact Position Indicator:
yes
Brochure:
View
Catalog:
View
Datasheet:
View
$101.00

Description

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 4A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
