Schneider Electric M9F23132 Multi9 C60Sp 1P D 32A 10Ka 277V Ul1077

Schneider Electric M9F23132 Multi9 C60Sp 1P D 32A 10Ka 277V Ul1077

Schneider Electric
SKU:
M9F23132
|
UPC:
3606481168764
$111.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

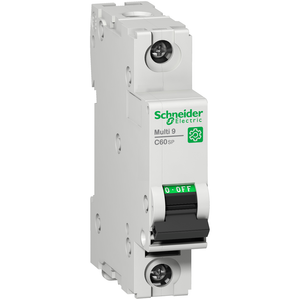

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 32A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Durability:
20000 cycles
Ambient Air Temperature For Operation:
-30-70 °C
Range:
Multi9
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Trip Unit Technology:
thermal-magnetic
Network Type:
AC || DC
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Relative Humidity:
95-95 % 55-55 °C
9 Mm Pitches:
2
Line Rated Current:
32 A 25 °C EN/IEC 60947-2
Device Short Name:
C60SP
Wire Stripping Length:
14 mm for top or bottom connection
Electrical Durability:
10000 cycles
Tightening Torque:
3.5-3.5 N.m top or bottom
Ambient Air Temperature For Storage:
-40-80 °C
Sustainable Offer Status:
Green Premium product
Color:
Gray
Operating Altitude:
0...6561.68 ft (0...2000 m)
Halogen Content Performance:
Halogen free product
Breaking Capacity:
10 kA AIR 277 V AC UL 1077 || 14 kA AIR 240 V AC UL 1077 || 14 kA AIR 120 V AC UL 1077 || 10 kA AIR 65 V DC UL 1077 || 10 kA AIR 277 V AC CSA C22.2 No 235 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 14 kA AIR 120 V AC CSA C22.2 No 235 || 10 kA AIR 65 V
Connections - Terminals:
tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - flexible
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Control Type:
toggle
Mounting Mode:
clip-on
Rohs Exemption Information:
Yes
Product Name:
Multi9 C60
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Provision For Padlocking:
padlockable
Product Certifications:
IEC || CCC || UR || CSA
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 20 kA 100 % EN/IEC 60947-2 - 60 V DC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 20 kA 100 % GB 14048.2 - 60 V DC
Poles Description:
1P
Pollution Degree:
3 EN/IEC 60947-2
Width:
18 mm
Local Signalling:
ON/OFF indication
Eu Rohs Directive:
Compliant with Exemptions
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Product Or Component Type:
miniature circuit-breaker
Curve Code:
D
Tropicalisation:
2 IEC 60068-1
Earth-Leakage Protection:
without
Height:
81 mm
Circularity Profile:
N/A
Device Application:
distribution
Contact Position Indicator:
yes
Depth:
72 mm
Environmental Disclosure:
ENVPEP1304004EN
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Suitability For Isolation:
yes EN/IEC 60947-2
Number Of Protected Poles:
1
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Mounting Support:
DIN rail
