Schneider Electric M9F23201 Multi9 C60Sp 2P D 1A 10Ka 480Y/277V Mcb

Schneider Electric M9F23201 Multi9 C60Sp 2P D 1A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F23201
|
UPC:
3606481169068
$218.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

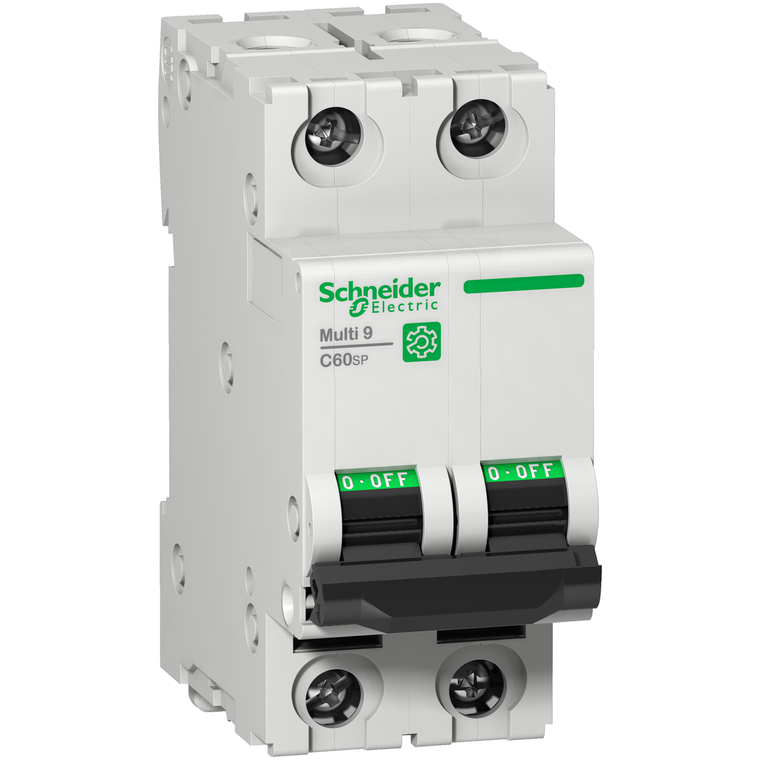

This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 1A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Ambient Air Temperature For Storage:
-40-80 °C
Provision For Padlocking:
padlockable
Number Of Protected Poles:
2
Product Name:
Multi9 C60
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Halogen Content Performance:
Halogen free product
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Operating Altitude:
0...6561.68 ft (0...2000 m)
Device Application:
distribution
Ambient Air Temperature For Operation:
-30-70 °C
Product Certifications:
IEC || CCC || UR || CSA
Environmental Disclosure:
ENVPEP1304004EN
Trip Unit Technology:
thermal-magnetic
Product Or Component Type:
miniature circuit-breaker
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Network Type:
DC || AC
Wire Stripping Length:
14 mm for top or bottom connection
Rohs Exemption Information:
Yes
Curve Code:
D
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Mounting Support:
DIN rail
Depth:
72 mm
9 Mm Pitches:
4
Tightening Torque:
2.5-2.5 N.m top or bottom
Electrical Durability:
10000 cycles
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 125 V DC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 10 kA AIR 125 V DC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2
Width:
36 mm
Control Type:
toggle
Mounting Mode:
clip-on
Pollution Degree:
3 EN/IEC 60947-2
Device Short Name:
C60SP
Color:
Gray
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Range:
Multi9
Eu Rohs Directive:
Compliant with Exemptions
Mechanical Durability:
20000 cycles
Sustainable Offer Status:
Green Premium product
Local Signalling:
ON/OFF indication
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Suitability For Isolation:
yes EN/IEC 60947-2
Line Rated Current:
1 A 25 °C EN/IEC 60947-2
Mercury Free:
Yes
Poles Description:
2P
Circularity Profile:
N/A
Relative Humidity:
95-95 % 55-55 °C
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Tropicalisation:
2 IEC 60068-1
Earth-Leakage Protection:
without
Height:
81 mm
Contact Position Indicator:
yes
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Brochure:
View
Datasheet:
View
