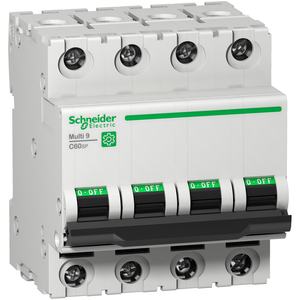

Schneider Electric M9F23410 Multi9 C60Sp 4P D 10A 10Ka 480Y/277V Mcb

Schneider Electric M9F23410 Multi9 C60Sp 4P D 10A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F23410
|
UPC:
3606481169297
$624.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 10A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Device Application:
distribution
Wire Stripping Length:
14 mm for top or bottom connection
Number Of Protected Poles:
4
Eu Rohs Directive:
Compliant with Exemptions
Ambient Air Temperature For Operation:
-30-70 °C
Width:
72 mm
Relative Humidity:
95-95 % 55-55 °C
Operating Altitude:
0...6561.68 ft (0...2000 m)
Height:
81 mm
Halogen Content Performance:
Halogen free product
9 Mm Pitches:
8
Local Signalling:
ON/OFF indication
Network Type:
AC
Magnetic Tripping Limit:
12 x In +/- 20 % AC
Device Short Name:
C60SP
Product Or Component Type:
miniature circuit-breaker
Ambient Air Temperature For Storage:
-40-80 °C
Tropicalisation:
2 IEC 60068-1
Electrical Durability:
10000 cycles
Rohs Exemption Information:
Yes
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Sustainable Offer Status:
Green Premium product
Curve Code:
D
Color:
Gray
Poles Description:
4P
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Control Type:
toggle
Depth:
72 mm
Provision For Padlocking:
padlockable
Contact Position Indicator:
yes
Trip Unit Technology:
thermal-magnetic
Environmental Disclosure:
ENVPEP1304004EN
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Mounting Mode:
clip-on
Range:
Multi9
Product Name:
Multi9 C60
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Pollution Degree:
3 EN/IEC 60947-2
Mounting Support:
DIN rail
Earth-Leakage Protection:
without
Line Rated Current:
10 A 25 °C EN/IEC 60947-2
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mechanical Durability:
20000 cycles
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Circularity Profile:
N/A
Product Certifications:
IEC || CCC || UR || CSA
Tightening Torque:
2.5-2.5 N.m top or bottom
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mercury Free:
Yes
