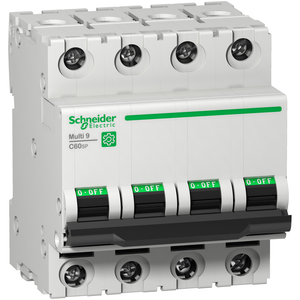

Schneider Electric M9F23425 Multi9 C60Sp 4P D 25A 10Ka 480Y/277V Mcb

Schneider Electric M9F23425 Multi9 C60Sp 4P D 25A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F23425
|
UPC:
3606481169259
$624.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60SP is a low voltage miniature circuit breaker (MCB). It is a 4P circuit breaker with 4 protected poles, 25A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 8 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Local Signalling:
ON/OFF indication
Relative Humidity:
95-95 % 55-55 °C
Height:
81 mm
Ambient Air Temperature For Operation:
-30-70 °C
Magnetic Tripping Limit:
12 x In +/- 20 % AC
Environmental Disclosure:
ENVPEP1304004EN
Earth-Leakage Protection:
without
Mercury Free:
Yes
Range:
Multi9
Mounting Mode:
clip-on
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Provision For Padlocking:
padlockable
Mechanical Durability:
20000 cycles
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Halogen Content Performance:
Halogen free product
Color:
Gray
Number Of Protected Poles:
4
Line Rated Current:
25 A 25 °C EN/IEC 60947-2
Product Certifications:
IEC || CCC || UR || CSA
Trip Unit Technology:
thermal-magnetic
Tightening Torque:
2.5-2.5 N.m top or bottom
Rohs Exemption Information:
Yes
Device Short Name:
C60SP
Breaking Capacity:
14 kA AIR 240 V AC UL 1077 || 14 kA AIR 240 V AC CSA C22.2 No 235 || 10 kA AIR 480Y/277 V AC UL 1077 || 10 kA AIR 480Y/277 V AC CSA C22.2 No 235 || 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 609
Product Name:
Multi9 C60
Pollution Degree:
3 EN/IEC 60947-2
Operating Altitude:
0...6561.68 ft (0...2000 m)
Sustainable Offer Status:
Green Premium product
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 1077 || CSA C22.2 No 235
Curve Code:
D
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Wire Stripping Length:
14 mm for top or bottom connection
Mounting Support:
DIN rail
Product Or Component Type:
miniature circuit-breaker
Poles Description:
4P
Contact Position Indicator:
yes
Eu Rohs Directive:
Compliant with Exemptions
Control Type:
toggle
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
9 Mm Pitches:
8
Device Application:
distribution
Depth:
72 mm
Circularity Profile:
N/A
Suitability For Isolation:
yes EN/IEC 60947-2
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tropicalisation:
2 IEC 60068-1
Network Type:
AC
Electrical Durability:
10000 cycles
Width:
72 mm
Ambient Air Temperature For Storage:
-40-80 °C
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
