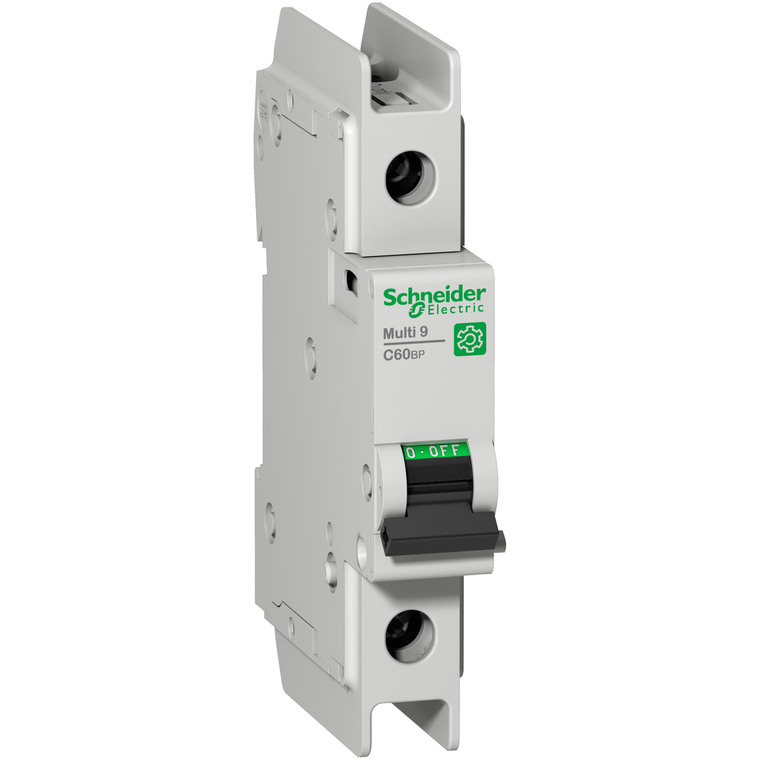

Schneider Electric M9F42105 Multi9 C60Bp 1P C 5A 10Ka 277V Ul489

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F42105 Multi9 C60Bp 1P C 5A 10Ka 277V Ul489

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F42105

UPC:

3.60648E+12

MPN:

Condition:

New

Mounting Mode:

clip-on

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Curve Code:

C

Height:

103 mm

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5

Mechanical Durability:

20000 cycles

Control Type:

toggle

Magnetic Tripping Limit:

8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC

Width:

18 mm

Relative Humidity:

95-95 % 55-55 °C

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Tropicalisation:

2 IEC 60068-1

Environmental Disclosure:

ENVPEP1304004EN

9 Mm Pitches:

2

Poles Description:

1P

Number Of Protected Poles:

1

Earth-Leakage Protection:

without

Line Rated Current:

5 A 25 °C EN/IEC 60947-2

Color:

Gray

Ambient Air Temperature For Storage:

-40-80 °C

Product Name:

Multi9 C60

Product Or Component Type:

miniature circuit-breaker

Circularity Profile:

N/A

Mounting Support:

DIN rail

Pollution Degree:

3 EN/IEC 60947-2

[Ics] Rated Service Breaking Capacity:

2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC

Tightening Torque:

2.5-2.5 N.m top or bottom

Suitability For Isolation:

yes EN/IEC 60947-2

Product Certifications:

IEC || CCC || CSA || UL

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC

Range:

Multi9

Device Application:

distribution

Wire Stripping Length:

14 mm for top or bottom connection

Breaking Capacity:

3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V

Sustainable Offer Status:

Green Premium product

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Contact Position Indicator:

yes

Electrical Durability:

10000 cycles

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible

Trip Unit Technology:

thermal-magnetic

Ambient Air Temperature For Operation:

-30-70 °C

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Eu Rohs Directive:

Compliant with Exemptions

Operating Altitude:

0...6561.68 ft (0...2000 m)

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Provision For Padlocking:

padlockable

Network Type:

DC || AC

Depth:

72 mm

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Mercury Free:

Yes

Device Short Name:

C60BP

Rohs Exemption Information:

Yes

Local Signalling:

ON/OFF indication

Halogen Content Performance:

Halogen free product
