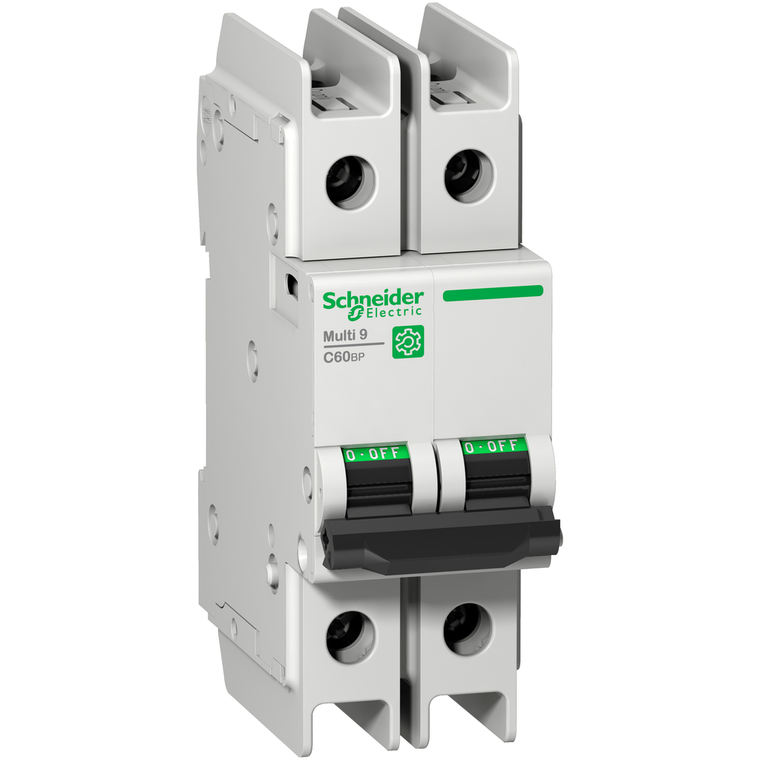

Schneider Electric M9F42206 Multi9 C60Bp 2P C 6A 10Ka 480Y/277V Mcb

Schneider Electric M9F42206 Multi9 C60Bp 2P C 6A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F42206
|
UPC:
3606481169808
$246.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 6A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Mounting Support:
DIN rail
Halogen Content Performance:
Halogen free product
Width:
36 mm
Line Rated Current:
6 A 25 °C EN/IEC 60947-2
Suitability For Isolation:
yes EN/IEC 60947-2
Device Short Name:
C60BP
Tightening Torque:
2.5-2.5 N.m top or bottom
Product Or Component Type:
miniature circuit-breaker
Ambient Air Temperature For Storage:
-40-80 °C
Relative Humidity:
95-95 % 55-55 °C
Range:
Multi9
Rohs Exemption Information:
Yes
Sustainable Offer Status:
Green Premium product
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tropicalisation:
2 IEC 60068-1
Poles Description:
2P
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Pollution Degree:
3 EN/IEC 60947-2
Control Type:
toggle
Product Name:
Multi9 C60
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Circularity Profile:
N/A
Number Of Protected Poles:
2
Local Signalling:
ON/OFF indication
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Contact Position Indicator:
yes
Environmental Disclosure:
ENVPEP1304004EN
Curve Code:
C
Electrical Durability:
10000 cycles
Trip Unit Technology:
thermal-magnetic
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Height:
103 mm
Provision For Padlocking:
padlockable
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Wire Stripping Length:
14 mm for top or bottom connection
Ambient Air Temperature For Operation:
-30-70 °C
9 Mm Pitches:
4
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Operating Altitude:
0...6561.68 ft (0...2000 m)
Mercury Free:
Yes
Mechanical Durability:
20000 cycles
Color:
Gray
Mounting Mode:
clip-on
Network Type:
DC || AC
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Depth:
72 mm
Device Application:
distribution
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
IEC || CCC || CSA || UL
Earth-Leakage Protection:
without
Brochure:
View
Datasheet:
View
