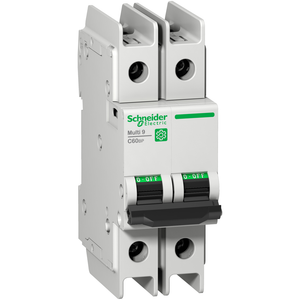

Schneider Electric M9F42215 Multi9 C60Bp 2P C 15A 10Ka 480Y/277V Mcb

Schneider Electric M9F42215 Multi9 C60Bp 2P C 15A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F42215
|
UPC:
3.60648E+12
$246.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Local Signalling:
ON/OFF indication
Curve Code:
C
Mechanical Durability:
20000 cycles
Color:
Gray
Suitability For Isolation:
yes EN/IEC 60947-2
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Device Short Name:
C60BP
Range:
Multi9
Tightening Torque:
2.5-2.5 N.m top or bottom
Product Or Component Type:
miniature circuit-breaker
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Relative Humidity:
95-95 % 55-55 °C
Mounting Mode:
clip-on
Wire Stripping Length:
14 mm for top or bottom connection
Pollution Degree:
3 EN/IEC 60947-2
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Provision For Padlocking:
padlockable
Device Application:
distribution
Width:
36 mm
Mounting Support:
DIN rail
Number Of Protected Poles:
2
Operating Altitude:
0...6561.68 ft (0...2000 m)
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Electrical Durability:
10000 cycles
Ambient Air Temperature For Storage:
-40-80 °C
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Tropicalisation:
2 IEC 60068-1
Trip Unit Technology:
thermal-magnetic
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Height:
103 mm
Eu Rohs Directive:
Compliant with Exemptions
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Earth-Leakage Protection:
without
Circularity Profile:
N/A
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Contact Position Indicator:
yes
9 Mm Pitches:
4
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Poles Description:
2P
Ambient Air Temperature For Operation:
-30-70 °C
Control Type:
toggle
Environmental Disclosure:
ENVPEP1304004EN
Line Rated Current:
15 A 25 °C EN/IEC 60947-2
Product Name:
Multi9 C60
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Product Certifications:
IEC || CCC || CSA || UL
Sustainable Offer Status:
Green Premium product
Network Type:
AC || DC
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Halogen Content Performance:
Halogen free product
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mercury Free:
Yes
Depth:
72 mm
Brochure:
View
Datasheet:
View
