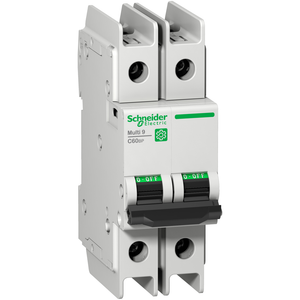

Schneider Electric M9F43210 Multi9 C60Bp 2P D 10A 10Ka 480Y/277V

Schneider Electric M9F43210 Multi9 C60Bp 2P D 10A 10Ka 480Y/277V

Schneider Electric
SKU:
M9F43210
|
UPC:
3.60648E+12
$246.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 10A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Color:
Gray
Ambient Air Temperature For Operation:
-30-70 °C
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Product Certifications:
IEC || CCC || CSA || UL
Relative Humidity:
95-95 % 55-55 °C
Contact Position Indicator:
yes
Mechanical Durability:
20000 cycles
Device Application:
distribution
Product Name:
Multi9 C60
Poles Description:
2P
Tropicalisation:
2 IEC 60068-1
Circularity Profile:
N/A
Depth:
72 mm
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Width:
36 mm
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Mercury Free:
Yes
Rohs Exemption Information:
Yes
Network Type:
AC || DC
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Number Of Protected Poles:
2
Sustainable Offer Status:
Green Premium product
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Eu Rohs Directive:
Compliant with Exemptions
Mounting Support:
DIN rail
Wire Stripping Length:
14 mm for top or bottom connection
Height:
103 mm
Halogen Content Performance:
Halogen free product
Provision For Padlocking:
padlockable
Local Signalling:
ON/OFF indication
Earth-Leakage Protection:
without
Device Short Name:
C60BP
Pollution Degree:
3 EN/IEC 60947-2
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mounting Mode:
clip-on
Tightening Torque:
2.5-2.5 N.m top or bottom
Operating Altitude:
0...6561.68 ft (0...2000 m)
Control Type:
toggle
9 Mm Pitches:
4
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Curve Code:
D
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Electrical Durability:
10000 cycles
Range:
Multi9
Ambient Air Temperature For Storage:
-40-80 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Trip Unit Technology:
thermal-magnetic
Line Rated Current:
10 A 25 °C EN/IEC 60947-2
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Suitability For Isolation:
yes EN/IEC 60947-2
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Product Or Component Type:
miniature circuit-breaker
Environmental Disclosure:
ENVPEP1304004EN
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
