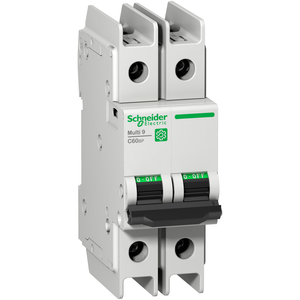

Schneider Electric M9F43215 Multi9 C60Bp 2P D 15A 10Ka 480Y/277V

Schneider Electric M9F43215 Multi9 C60Bp 2P D 15A 10Ka 480Y/277V

Schneider Electric
SKU:
M9F43215
|
UPC:
3.60648E+12
$246.00
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 15A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Depth:
72 mm
Halogen Content Performance:
Halogen free product
Color:
Gray
Contact Position Indicator:
yes
Operating Altitude:
0...6561.68 ft (0...2000 m)
Ambient Air Temperature For Operation:
-30-70 °C
Poles Description:
2P
Range:
Multi9
Relative Humidity:
95-95 % 55-55 °C
Rohs Exemption Information:
Yes
Number Of Protected Poles:
2
Pollution Degree:
3 EN/IEC 60947-2
Ambient Air Temperature For Storage:
-40-80 °C
Tropicalisation:
2 IEC 60068-1
Trip Unit Technology:
thermal-magnetic
Device Application:
distribution
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Line Rated Current:
15 A 25 °C EN/IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Device Short Name:
C60BP
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
10000 cycles
Product Certifications:
IEC || CCC || CSA || UL
Environmental Disclosure:
ENVPEP1304004EN
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Product Name:
Multi9 C60
Mercury Free:
Yes
Mechanical Durability:
20000 cycles
Circularity Profile:
N/A
Suitability For Isolation:
yes EN/IEC 60947-2
Mounting Support:
DIN rail
Local Signalling:
ON/OFF indication
Eu Rohs Directive:
Compliant with Exemptions
Provision For Padlocking:
padlockable
Mounting Mode:
clip-on
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Width:
36 mm
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Network Type:
AC || DC
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
9 Mm Pitches:
4
Curve Code:
D
Wire Stripping Length:
14 mm for top or bottom connection
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Earth-Leakage Protection:
without
Height:
103 mm
Tightening Torque:
2.5-2.5 N.m top or bottom
Control Type:
toggle
Product Or Component Type:
miniature circuit-breaker
Brochure:
View
Datasheet:
View
