Schneider Electric M9F43306 Multi9 C60Bp 3P D 6A 10Ka 480Y/277V Mcb
Schneider Electric
$356.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9F43306 Multi9 C60Bp 3P D 6A 10Ka 480Y/277V Mcb
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

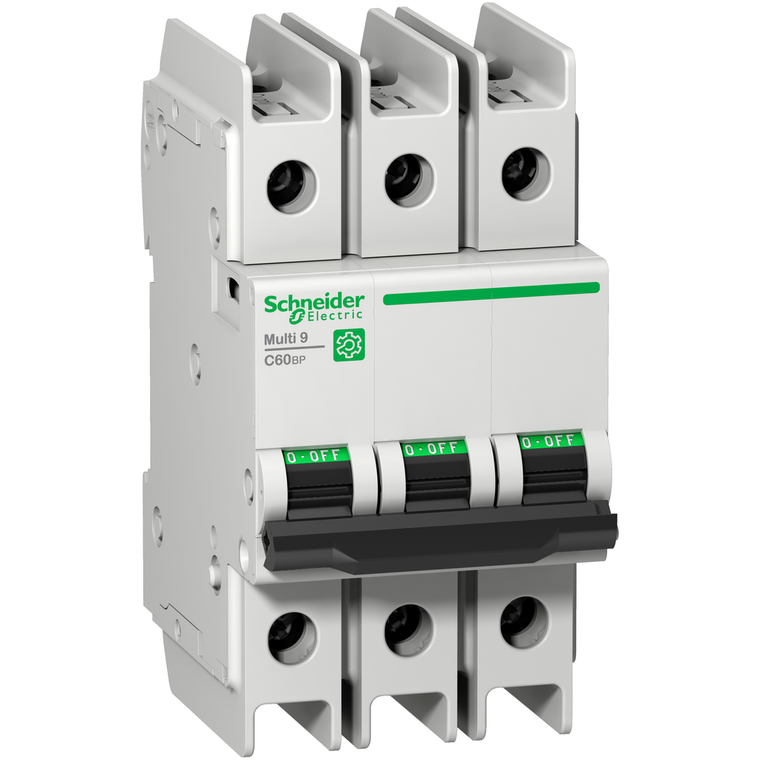

This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 3P circuit breaker with 3 protected poles, 6A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Ambient Air Temperature For Operation:
- -30-70 °C
- Magnetic Tripping Limit:
- 12 x In +/- 20 % AC
- Poles Description:
- 3P
- Environmental Disclosure:
- ENVPEP1304004EN
- Circularity Profile:
- N/A
- Line Rated Current:
- 6 A 25 °C EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Ambient Air Temperature For Storage:
- -40-80 °C
- Local Signalling:
- ON/OFF indication
- Mechanical Durability:
- 20000 cycles
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Product Name:
- Multi9 C60
- Product Certifications:
- IEC || CCC || CSA || UL
- Mercury Free:
- Yes
- Mounting Mode:
- clip-on
- Height:
- 103 mm
- Tropicalisation:
- 2 IEC 60068-1
- Mounting Support:
- DIN rail
- Relative Humidity:
- 95-95 % 55-55 °C
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Range:
- Multi9
- Number Of Protected Poles:
- 3
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Control Type:
- toggle
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Short Name:
- C60BP
- Provision For Padlocking:
- padlockable
- Device Application:
- distribution
- Network Type:
- AC
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 480
- Halogen Content Performance:
- Halogen free product
- 9 Mm Pitches:
- 6
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Rohs Exemption Information:
- Yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Depth:
- 72 mm
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Electrical Durability:
- 10000 cycles
- Curve Code:
- D
- Color:
- Gray
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Width:
- 54 mm
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Earth-Leakage Protection:
- without
- Product Or Component Type:
- miniature circuit-breaker
- Contact Position Indicator:
- yes
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- thermal-magnetic
