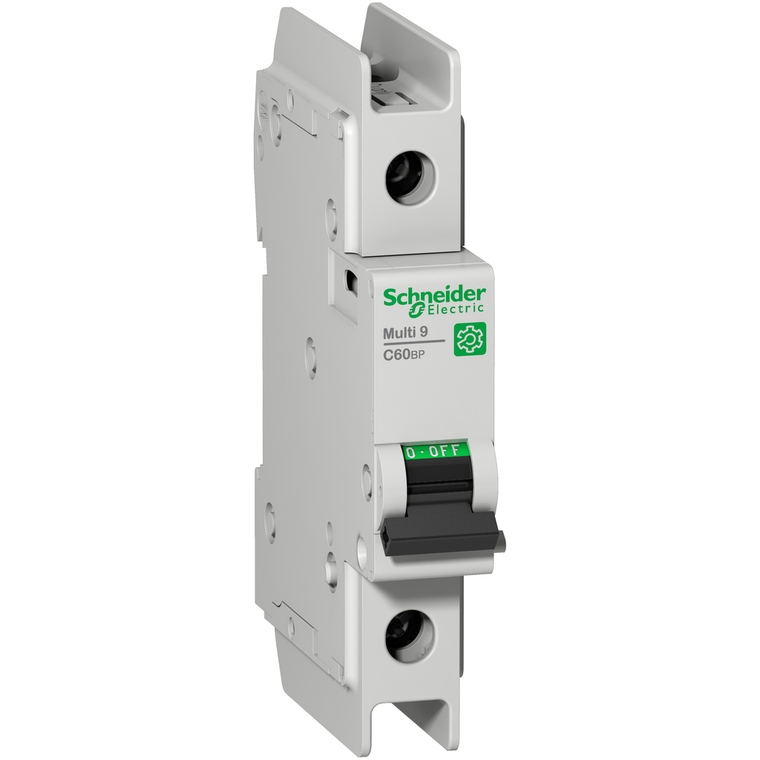

Schneider Electric M9F44108 Multi9 C60Bp 1P Z 8A 10Ka 277V Ul489 Mcb

Schneider Electric M9F44108 Multi9 C60Bp 1P Z 8A 10Ka 277V Ul489 Mcb

Schneider Electric
SKU:
M9F44108
|
UPC:
3.60648E+12
Availability:
Contact us to confirm availability and lead times.
$171.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 8A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Width:
18 mm
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Product Certifications:
IEC || CCC || CSA || UL
Network Type:
AC || DC
Earth-Leakage Protection:
without
Local Signalling:
ON/OFF indication
Device Short Name:
C60BP
Number Of Protected Poles:
1
Trip Unit Technology:
thermal-magnetic
Sustainable Offer Status:
Green Premium product
Mounting Mode:
clip-on
Control Type:
toggle
Mechanical Durability:
20000 cycles
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Mounting Support:
DIN rail
Device Application:
distribution
Ambient Air Temperature For Operation:
-30-70 °C
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Rohs Exemption Information:
Yes
Poles Description:
1P
Relative Humidity:
95-95 % 55-55 °C
Ambient Air Temperature For Storage:
-40-80 °C
Circularity Profile:
N/A
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
Environmental Disclosure:
ENVPEP1304004EN
Eu Rohs Directive:
Compliant with Exemptions
Tropicalisation:
2 IEC 60068-1
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Product Name:
Multi9 C60
Depth:
72 mm
9 Mm Pitches:
2
Suitability For Isolation:
yes EN/IEC 60947-2
Pollution Degree:
3 EN/IEC 60947-2
Halogen Content Performance:
Halogen free product
Wire Stripping Length:
14 mm for top or bottom connection
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Color:
Gray
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Curve Code:
Z
Connections - Terminals:
tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
Contact Position Indicator:
yes
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
Magnetic Tripping Limit:
3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC
Mercury Free:
Yes
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Line Rated Current:
8 A 25 °C EN/IEC 60947-2
Tightening Torque:
2.5-2.5 N.m top or bottom
Operating Altitude:
0...6561.68 ft (0...2000 m)
Range:
Multi9
Provision For Padlocking:
padlockable
Electrical Durability:
10000 cycles
Height:
103 mm
Product Or Component Type:
miniature circuit-breaker
