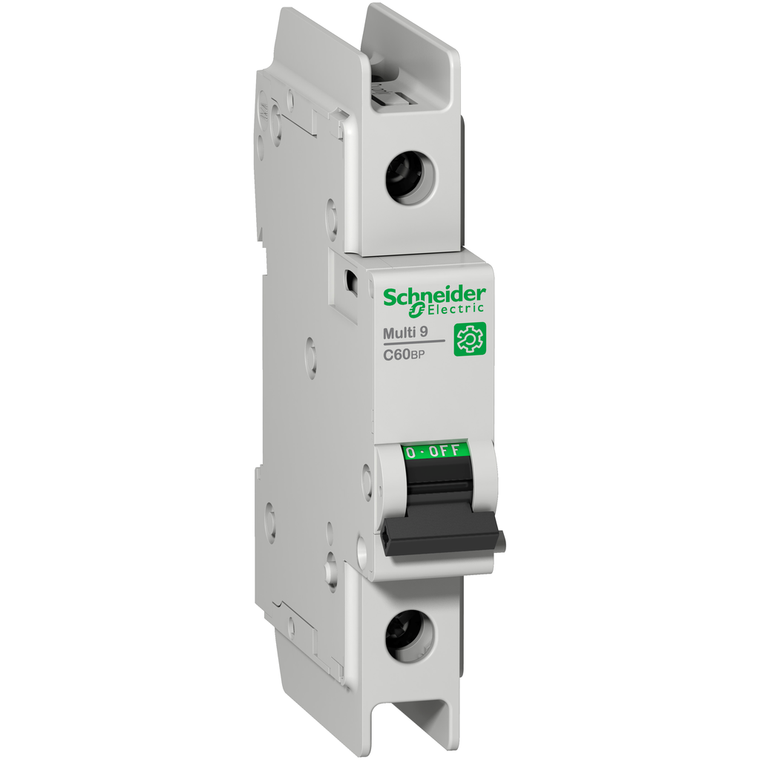

Schneider Electric M9F44110 Multi9 C60Bp 1P Z 10A 10Ka 277V Ul489
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 10A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Device Short Name:
- C60BP
- Magnetic Tripping Limit:
- 3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- Electrical Durability:
- 10000 cycles
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Pollution Degree:
- 3 EN/IEC 60947-2
- Product Name:
- Multi9 C60
- Depth:
- 72 mm
- 9 Mm Pitches:
- 2
- Environmental Disclosure:
- ENVPEP1304004EN
- Network Type:
- DC || AC
- Relative Humidity:
- 95-95 % 55-55 °C
- Provision For Padlocking:
- padlockable
- Mercury Free:
- Yes
- Eu Rohs Directive:
- Compliant with Exemptions
- Mechanical Durability:
- 20000 cycles
- Mounting Mode:
- clip-on
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ambient Air Temperature For Operation:
- -30-70 °C
- Poles Description:
- 1P
- Line Rated Current:
- 10 A 25 °C EN/IEC 60947-2
- Range:
- Multi9
- Tightening Torque:
- 2.5-2.5 N.m top or bottom
- Earth-Leakage Protection:
- without
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible
- Height:
- 103 mm
- Trip Unit Technology:
- thermal-magnetic
- Device Application:
- distribution
- Product Certifications:
- IEC || CCC || CSA || UL
- Tropicalisation:
- 2 IEC 60068-1
- Width:
- 18 mm
- Color:
- Gray
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Number Of Protected Poles:
- 1
- Ambient Air Temperature For Storage:
- -40-80 °C
- Breaking Capacity:
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
- Rohs Exemption Information:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Wire Stripping Length:
- 14 mm for top or bottom connection
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Local Signalling:
- ON/OFF indication
- Halogen Content Performance:
- Halogen free product
- Curve Code:
- Z
- Circularity Profile:
- N/A
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Control Type:
- toggle
- Mounting Support:
- DIN rail
- Contact Position Indicator:
- yes
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Product Or Component Type:
- miniature circuit-breaker
