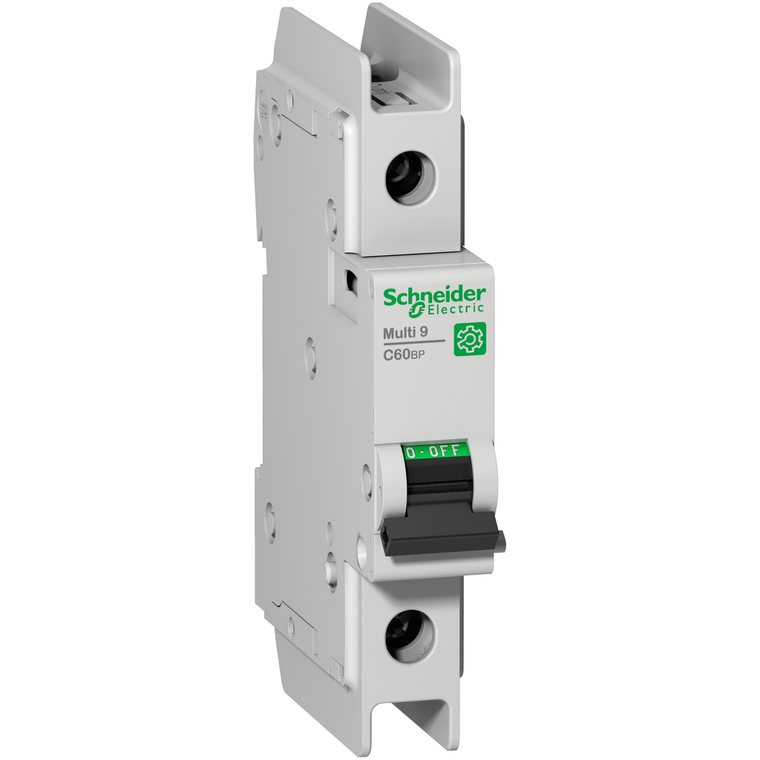

Schneider Electric M9F44125 Multi9 C60Bp 1P Z 25A 10Ka 277V Ul489

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F44125 Multi9 C60Bp 1P Z 25A 10Ka 277V Ul489

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F44125

UPC:

3606481169396

MPN:

Condition:

New

Sustainable Offer Status:

Green Premium product

Pollution Degree:

3 EN/IEC 60947-2

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Ambient Air Temperature For Storage:

-40-80 °C

Device Short Name:

C60BP

Earth-Leakage Protection:

without

Local Signalling:

ON/OFF indication

Ambient Air Temperature For Operation:

-30-70 °C

Mounting Support:

DIN rail

Mercury Free:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC

Color:

Gray

[Ics] Rated Service Breaking Capacity:

2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC

Mechanical Durability:

20000 cycles

Breaking Capacity:

3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V

Electrical Durability:

10000 cycles

Circularity Profile:

N/A

Tightening Torque:

2.5-2.5 N.m top or bottom

Provision For Padlocking:

padlockable

Halogen Content Performance:

Halogen free product

Line Rated Current:

25 A 25 °C EN/IEC 60947-2

Depth:

72 mm

Number Of Protected Poles:

1

Connections - Terminals:

tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 8) - rigid || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible with ferrule || tunnel type terminal top or bottom) 1-16 mm² AWG 18...AWG 8) - flexible

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Width:

18 mm

Suitability For Isolation:

yes EN/IEC 60947-2

Environmental Disclosure:

ENVPEP1304004EN

Operating Altitude:

0...6561.68 ft (0...2000 m)

Device Application:

distribution

Range:

Multi9

Height:

103 mm

Curve Code:

Z

Trip Unit Technology:

thermal-magnetic

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5

Poles Description:

1P

Relative Humidity:

95-95 % 55-55 °C

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Wire Stripping Length:

14 mm for top or bottom connection

Mounting Mode:

clip-on

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Compliant with Exemptions

Product Name:

Multi9 C60

Magnetic Tripping Limit:

3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC

Contact Position Indicator:

yes

Control Type:

toggle

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Product Certifications:

IEC || CCC || CSA || UL

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

9 Mm Pitches:

2

Product Or Component Type:

miniature circuit-breaker

Network Type:

AC || DC

Tropicalisation:

2 IEC 60068-1
