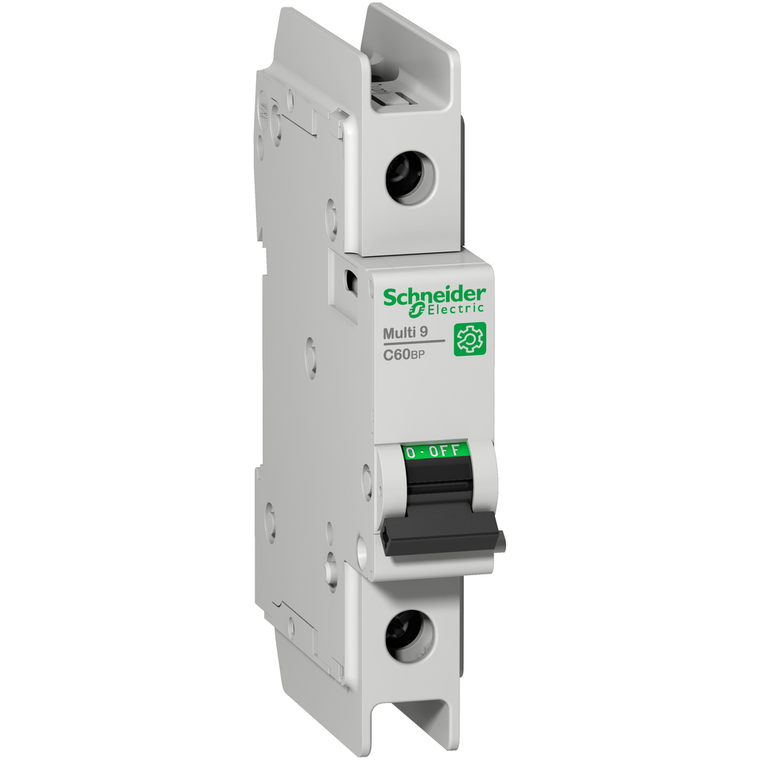

Schneider Electric M9F44130 Multi9 C60Bp 1P Z 30A 10Ka 277V Ul489 Pack of 12
Schneider Electric
$1,440.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60BP is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 30A rated current and Z tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 103mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Height:
- 103 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Relative Humidity:
- 95-95 % 55-55 °C
- Device Short Name:
- C60BP
- Mounting Support:
- DIN rail
- Depth:
- 72 mm
- Halogen Content Performance:
- Halogen free product
- Environmental Disclosure:
- ENVPEP1304004EN
- Ambient Air Temperature For Operation:
- -30-70 °C
- Product Or Component Type:
- miniature circuit-breaker
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Control Type:
- toggle
- Magnetic Tripping Limit:
- 3 x In +/- 20 % AC || 4.2 x In +/- 20 % DC
- Rohs Exemption Information:
- Yes
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- Mercury Free:
- Yes
- Mechanical Durability:
- 20000 cycles
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Product Name:
- Multi9 C60
- Circularity Profile:
- N/A
- Breaking Capacity:
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
- Width:
- 18 mm
- Poles Description:
- 1P
- Mounting Mode:
- clip-on
- 9 Mm Pitches:
- 2
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pollution Degree:
- 3 EN/IEC 60947-2
- Color:
- Gray
- Contact Position Indicator:
- yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- Multi9
- Sustainable Offer Status:
- Green Premium product
- Line Rated Current:
- 30 A 25 °C EN/IEC 60947-2
- Earth-Leakage Protection:
- without
- Curve Code:
- Z
- Provision For Padlocking:
- padlockable
- Connections - Terminals:
- tunnel type terminal top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule || tunnel type terminal top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Ambient Air Temperature For Storage:
- -40-80 °C
- Electrical Durability:
- 10000 cycles
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Trip Unit Technology:
- thermal-magnetic
- Network Type:
- DC || AC
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Device Application:
- distribution
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Local Signalling:
- ON/OFF indication
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Product Certifications:
- IEC || CCC || CSA || UL
- Number Of Protected Poles:
- 1
- Tropicalisation:
- 2 IEC 60068-1
