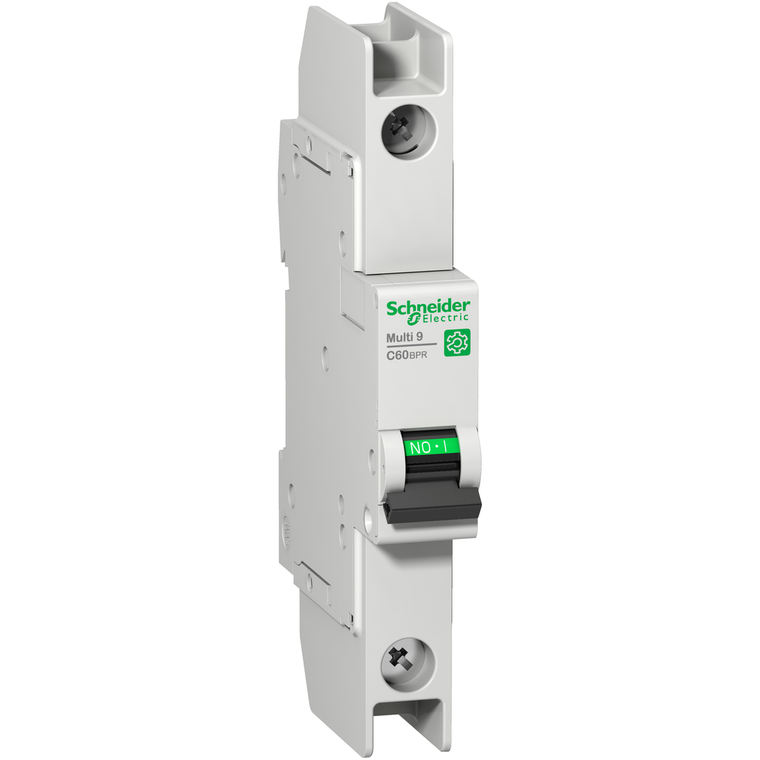

Schneider Electric M9F52115 Multi9 C60Bpr 1P C 15A 10Ka 277V Ul489

Schneider Electric M9F52115 Multi9 C60Bpr 1P C 15A 10Ka 277V Ul489

Schneider Electric
SKU:
M9F52115
|
UPC:
3606481170781
$122.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 15A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Ambient Air Temperature For Operation:
-30-70 °C
Network Type:
DC || AC
Device Application:
distribution
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Height:
127 mm
Environmental Disclosure:
ENVPEP1304004EN
Control Type:
toggle
Device Short Name:
C60BPR
Line Rated Current:
15 A 25 °C EN/IEC 60947-2
Halogen Content Performance:
Halogen free product
Tightening Torque:
2-2 N.m top or bottom
Mechanical Durability:
20000 cycles
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Mercury Free:
Yes
Depth:
72 mm
Poles Description:
1P
Suitability For Isolation:
yes EN/IEC 60947-2
Mounting Mode:
clip-on
Product Certifications:
IEC || CCC || CSA || UL
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
Mounting Support:
DIN rail
Product Or Component Type:
miniature circuit-breaker
Range:
Multi9
Number Of Protected Poles:
1
Trip Unit Technology:
thermal-magnetic
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
Provision For Padlocking:
padlockable
Tropicalisation:
2 IEC 60068-1
Pollution Degree:
3 EN/IEC 60947-2
Sustainable Offer Status:
Green Premium product
Width:
18 mm
Color:
Gray
Earth-Leakage Protection:
without
Operating Altitude:
0...6561.68 ft (0...2000 m)
Local Signalling:
ON/OFF indication
Curve Code:
C
Rohs Exemption Information:
Yes
Relative Humidity:
95-95 % 55-55 °C
Product Name:
Multi9 C60
Circularity Profile:
N/A
Ambient Air Temperature For Storage:
-40-80 °C
Eu Rohs Directive:
Compliant with Exemptions
Electrical Durability:
10000 cycles
Contact Position Indicator:
yes
Breaking Capacity:
3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
Overvoltage Category:
IV
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
9 Mm Pitches:
2
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Connections - Terminals:
ring terminal top or bottom)
[Ics] Rated Service Breaking Capacity:
2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
