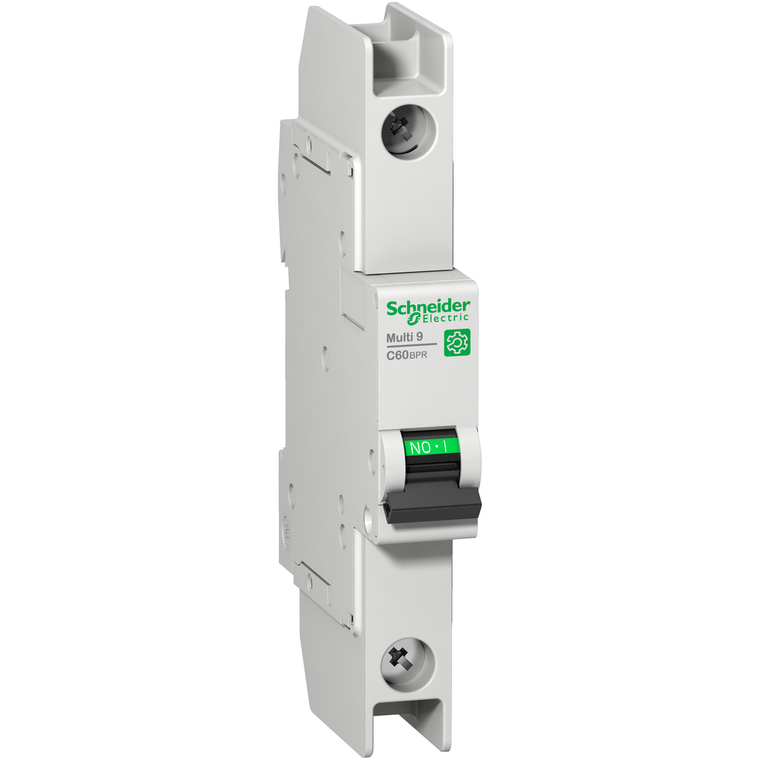

Schneider Electric M9F52135 Multi9 C60Bpr 1P C 35A 10Ka 277V Ul489
Schneider Electric
$189.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 35A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard and 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Pollution Degree:
- 3 EN/IEC 60947-2
- Number Of Protected Poles:
- 1
- Control Type:
- toggle
- Product Name:
- Multi9 C60
- Product Certifications:
- IEC || CCC || CSA || UL
- Mounting Mode:
- clip-on
- Network Type:
- AC || DC
- Depth:
- 72 mm
- Mounting Support:
- DIN rail
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ambient Air Temperature For Storage:
- -40-80 °C
- Tightening Torque:
- 2-2 N.m top or bottom
- Tropicalisation:
- 2 IEC 60068-1
- Eu Rohs Directive:
- Compliant with Exemptions
- Device Application:
- distribution
- Trip Unit Technology:
- thermal-magnetic
- Poles Description:
- 1P
- Sustainable Offer Status:
- Green Premium product
- Range:
- Multi9
- Width:
- 18 mm
- Curve Code:
- C
- Mercury Free:
- Yes
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Environmental Disclosure:
- ENVPEP1304004EN
- Product Or Component Type:
- miniature circuit-breaker
- Contact Position Indicator:
- yes
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 60 V DC
- Provision For Padlocking:
- padlockable
- Earth-Leakage Protection:
- without
- Mechanical Durability:
- 20000 cycles
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Ambient Air Temperature For Operation:
- -30-70 °C
- Overvoltage Category:
- IV
- Height:
- 127 mm
- Line Rated Current:
- 35 A 25 °C EN/IEC 60947-2
- Rohs Exemption Information:
- Yes
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- [Ics] Rated Service Breaking Capacity:
- 2.25 kA 75 % EN/IEC 60947-2 - 415 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC || 2.25 kA 75 % GB 14048.2 - 415 V AC || 7.5 kA 75 % GB 14048.2 - 240 V AC || 15 kA 75 % GB 14048.2 - 60 V DC || 15 kA 75 % EN/IEC 60947-2 - 60 V DC
- Halogen Content Performance:
- Halogen free product
- Relative Humidity:
- 95-95 % 55-55 °C
- Breaking Capacity:
- 3 kA Icu 415 V AC EN/IEC 60947-2 || 10 kA Icu 240 V AC EN/IEC 60947-2 || 20 kA Icu 60 V DC EN/IEC 60947-2 || 3 kA Icu 415 V AC GB 14048.2 || 10 kA Icu 240 V AC GB 14048.2 || 20 kA Icu 60 V DC GB 14048.2 || 10 kA AIR 277 V AC UL 489 || 14 kA AIR 240 V
- Electrical Durability:
- 10000 cycles
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Circularity Profile:
- N/A
- Device Short Name:
- C60BPR
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Local Signalling:
- ON/OFF indication
- Connections - Terminals:
- ring terminal top or bottom)
- 9 Mm Pitches:
- 2
- Color:
- Gray
