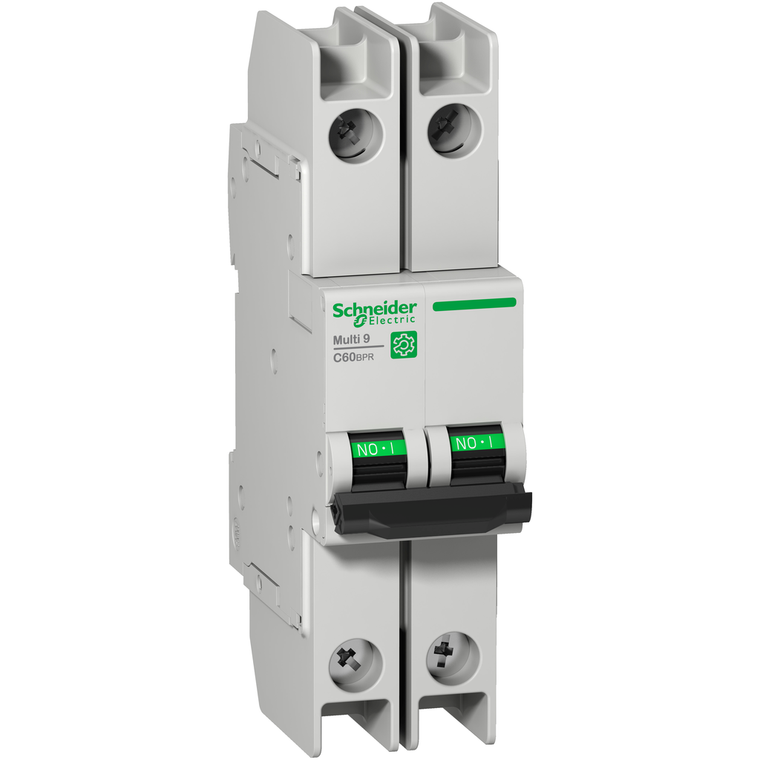

Schneider Electric M9F52201 Multi9 C60Bpr 2P C 1A 10Ka 480Y/277V Mcb
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 1A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Curve Code:
- C
- Provision For Padlocking:
- padlockable
- Mechanical Durability:
- 20000 cycles
- Color:
- Gray
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Halogen Content Performance:
- Halogen free product
- Ambient Air Temperature For Operation:
- -30-70 °C
- Mercury Free:
- Yes
- Poles Description:
- 2P
- Product Or Component Type:
- miniature circuit-breaker
- Product Certifications:
- IEC || CCC || CSA || UL
- Connections - Terminals:
- ring terminal top or bottom)
- Electrical Durability:
- 10000 cycles
- Trip Unit Technology:
- thermal-magnetic
- Control Type:
- toggle
- Tropicalisation:
- 2 IEC 60068-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- 9 Mm Pitches:
- 4
- Environmental Disclosure:
- ENVPEP1304004EN
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Sustainable Offer Status:
- Green Premium product
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC || 12 x In +/- 20 % DC
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Relative Humidity:
- 95-95 % 55-55 °C
- Device Short Name:
- C60BPR
- Range:
- Multi9
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Mounting Mode:
- clip-on
- Pollution Degree:
- 3 EN/IEC 60947-2
- Contact Position Indicator:
- yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Line Rated Current:
- 1 A 25 °C EN/IEC 60947-2
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Overvoltage Category:
- IV
- Network Type:
- DC || AC
- Local Signalling:
- ON/OFF indication
- Mounting Support:
- DIN rail
- Rohs Exemption Information:
- Yes
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-80 °C
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Device Application:
- distribution
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Product Name:
- Multi9 C60
- Earth-Leakage Protection:
- without
- Tightening Torque:
- 2-2 N.m top or bottom
- Depth:
- 72 mm
- Eu Rohs Directive:
- Compliant with Exemptions
- Height:
- 127 mm
- Number Of Protected Poles:
- 2
- Width:
- 36 mm
