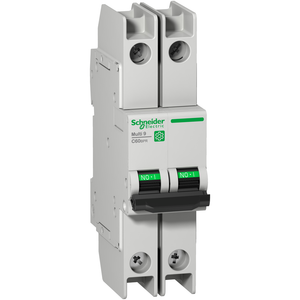

Schneider Electric M9F52245 Multi9 C60Bpr 2P C 45A 10Ka 240V Ul489
Schneider Electric
$409.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9F52245 Multi9 C60Bpr 2P C 45A 10Ka 240V Ul489
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 45A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
- Color:
- Gray
- Device Short Name:
- C60BPR
- Trip Unit Technology:
- thermal-magnetic
- Electrical Durability:
- 10000 cycles
- [Ics] Rated Service Breaking Capacity:
- 4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
- Pollution Degree:
- 3 EN/IEC 60947-2
- Curve Code:
- C
- Product Or Component Type:
- miniature circuit-breaker
- Tropicalisation:
- 2 IEC 60068-1
- Relative Humidity:
- 95-95 % 55-55 °C
- Depth:
- 72 mm
- Width:
- 36 mm
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Range:
- Multi9
- Standards:
- EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
- Mounting Mode:
- clip-on
- Environmental Disclosure:
- ENVPEP1304004EN
- Network Type:
- AC
- Halogen Content Performance:
- Halogen free product
- Tightening Torque:
- 2-2 N.m top or bottom
- Height:
- 127 mm
- Local Signalling:
- ON/OFF indication
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Application:
- distribution
- Mounting Support:
- DIN rail
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Operating Altitude:
- 0...6561.68 ft (0...2000 m)
- Breaking Capacity:
- 6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 240
- Poles Description:
- 2P
- Product Name:
- Multi9 C60
- Connections - Terminals:
- ring terminal top or bottom)
- Control Type:
- toggle
- Mercury Free:
- Yes
- Circularity Profile:
- N/A
- Eu Rohs Directive:
- Compliant with Exemptions
- Ambient Air Temperature For Storage:
- -40-80 °C
- Provision For Padlocking:
- padlockable
- Suitability For Isolation:
- yes EN/IEC 60947-2
- 9 Mm Pitches:
- 4
- Earth-Leakage Protection:
- without
- Product Certifications:
- IEC || CCC || CSA || UL
- Number Of Protected Poles:
- 2
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
- Line Rated Current:
- 45 A 25 °C EN/IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 60947-2
- Overvoltage Category:
- IV
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- [Ui] Rated Insulation Voltage:
- 500 V AC EN/IEC 60947-2
- Contact Position Indicator:
- yes
- Mechanical Durability:
- 20000 cycles
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -30-70 °C
