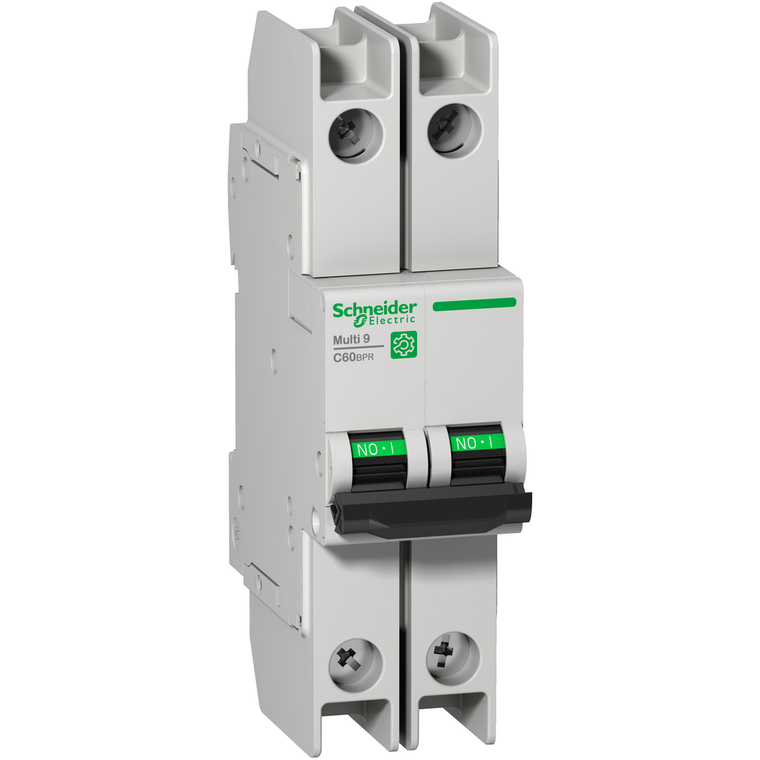

Schneider Electric M9F52250 Multi9 C60Bpr 2P C 50A 10Ka 240V Ul489 Pack of 6

(No reviews yet) Write a Review

Write a Review

Schneider Electric M9F52250 Multi9 C60Bpr 2P C 50A 10Ka 240V Ul489 Pack of 6

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

M9F52250

UPC:

3606481170866

MPN:

Condition:

New

9 Mm Pitches:

4

Local Signalling:

ON/OFF indication

Eu Rohs Directive:

Compliant with Exemptions

Circularity Profile:

N/A

Environmental Disclosure:

ENVPEP1304004EN

Standards:

EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5

Number Of Protected Poles:

2

Poles Description:

2P

Tropicalisation:

2 IEC 60068-1

Connections - Terminals:

ring terminal top or bottom)

Device Short Name:

C60BPR

Halogen Content Performance:

Halogen free product

Ambient Air Temperature For Storage:

-40-80 °C

Breaking Capacity:

6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 10 kA AIR 240 V AC UL 489 || 10 kA AIR 240

Line Rated Current:

50 A 25 °C EN/IEC 60947-2

Rohs Exemption Information:

Yes

Pollution Degree:

3 EN/IEC 60947-2

Product Name:

Multi9 C60

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operating Altitude:

0...6561.68 ft (0...2000 m)

Device Application:

distribution

Suitability For Isolation:

yes EN/IEC 60947-2

Earth-Leakage Protection:

without

Trip Unit Technology:

thermal-magnetic

[Ue] Rated Operational Voltage:

240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz

China Rohs Regulation:

Product out of China RoHS scope. Substance declaration for your information.

Ambient Air Temperature For Operation:

-30-70 °C

Magnetic Tripping Limit:

8.5 x In +/- 20 % AC

Sustainable Offer Status:

Green Premium product

Range:

Multi9

Overvoltage Category:

IV

Mounting Mode:

clip-on

Ip Degree Of Protection:

IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529

Provision For Padlocking:

padlockable

Product Certifications:

IEC || CCC || CSA || UL

Mechanical Durability:

20000 cycles

[Uimp] Rated Impulse Withstand Voltage:

6 kVEN/IEC 60947-2

Control Type:

toggle

Width:

36 mm

Network Type:

AC

Color:

Gray

Curve Code:

C

Depth:

72 mm

Product Or Component Type:

miniature circuit-breaker

Mercury Free:

Yes

Relative Humidity:

95-95 % 55-55 °C

[Ics] Rated Service Breaking Capacity:

4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Tightening Torque:

2-2 N.m top or bottom

[Ui] Rated Insulation Voltage:

500 V AC EN/IEC 60947-2

Mounting Support:

DIN rail

Height:

127 mm

Electrical Durability:

10000 cycles

Contact Position Indicator:

yes
