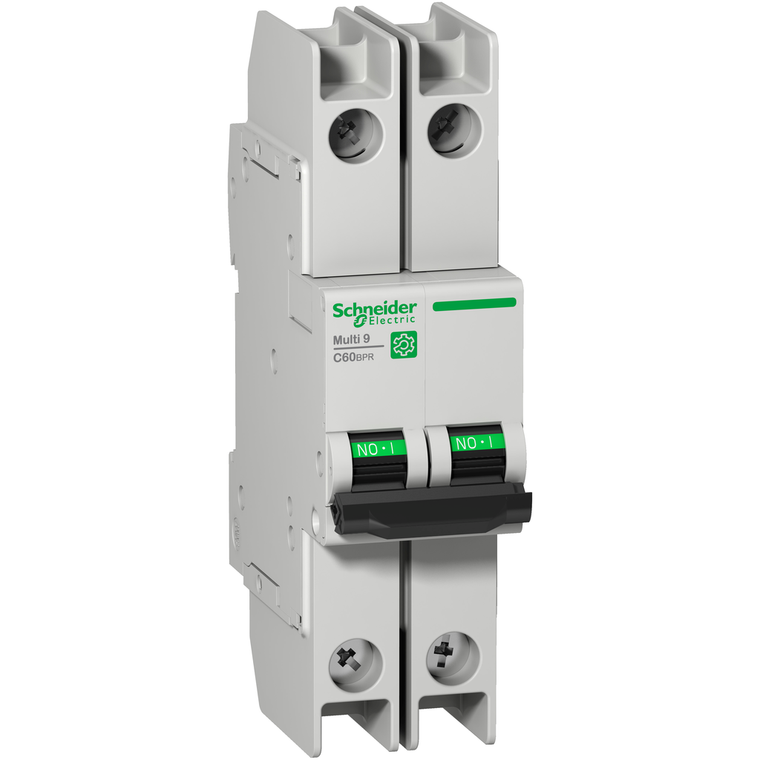

Schneider Electric M9F53201 Multi9 C60Bpr 2P D 1A 10Ka 480Y/277V Mcb

Schneider Electric M9F53201 Multi9 C60Bpr 2P D 1A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F53201
|
UPC:
3606481171443
$282.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 1A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Halogen Content Performance:
Halogen free product
Environmental Disclosure:
ENVPEP1304004EN
9 Mm Pitches:
4
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Color:
Gray
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Line Rated Current:
1 A 25 °C EN/IEC 60947-2
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Tightening Torque:
2-2 N.m top or bottom
Trip Unit Technology:
thermal-magnetic
Rohs Exemption Information:
Yes
Device Short Name:
C60BPR
Connections - Terminals:
ring terminal top or bottom)
Product Or Component Type:
miniature circuit-breaker
Depth:
72 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Electrical Durability:
10000 cycles
Height:
127 mm
Provision For Padlocking:
padlockable
Mounting Support:
DIN rail
Ambient Air Temperature For Storage:
-40-80 °C
Mounting Mode:
clip-on
Circularity Profile:
N/A
Poles Description:
2P
Number Of Protected Poles:
2
Product Name:
Multi9 C60
Device Application:
distribution
Earth-Leakage Protection:
without
Eu Rohs Directive:
Compliant with Exemptions
Product Certifications:
IEC || CCC || CSA || UL
Sustainable Offer Status:
Green Premium product
Operating Altitude:
0...6561.68 ft (0...2000 m)
Tropicalisation:
2 IEC 60068-1
Pollution Degree:
3 EN/IEC 60947-2
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Mechanical Durability:
20000 cycles
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Local Signalling:
ON/OFF indication
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC || 15 kA 75 % EN/IEC 60947-2 - 240 V AC || 4.5 kA 75 % GB 14048.2 - 440 V AC || 7.5 kA 75 % GB 14048.2 - 415 V AC || 15 kA 75 % GB 14048.2 - 240 V AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Range:
Multi9
Mercury Free:
Yes
Width:
36 mm
Control Type:
toggle
Relative Humidity:
95-95 % 55-55 °C
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Network Type:
AC || DC
Ambient Air Temperature For Operation:
-30-70 °C
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Suitability For Isolation:
yes EN/IEC 60947-2
Curve Code:
D
Contact Position Indicator:
yes
