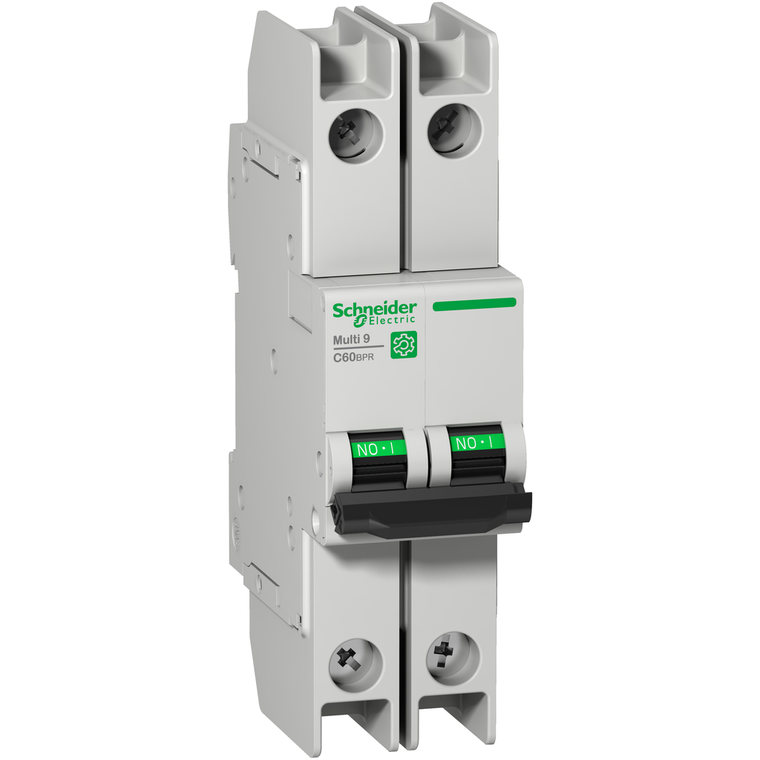

Schneider Electric M9F53202 Multi9 C60Bpr 2P D 2A 10Ka 480Y/277V Mcb

Schneider Electric M9F53202 Multi9 C60Bpr 2P D 2A 10Ka 480Y/277V Mcb

Schneider Electric
SKU:
M9F53202
|
UPC:
3606481171436
$282.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Multi9 C60BPR is a low voltage miniature circuit breaker (MCB). It is a 2P circuit breaker with 2 protected poles, 2A rated current and D tripping curve. The rated short circuit breaking capacity goes up to 10kA at 415VAC conforming to EN/IEC 60947-2 standard and 10kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 36mm x (H) 127mm x (D) 72mm. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Additional Information
Relative Humidity:
95-95 % 55-55 °C
Local Signalling:
ON/OFF indication
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Environmental Disclosure:
ENVPEP1304004EN
9 Mm Pitches:
4
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Ambient Air Temperature For Operation:
-30-70 °C
Poles Description:
2P
Tropicalisation:
2 IEC 60068-1
Number Of Protected Poles:
2
Control Type:
toggle
Mounting Support:
DIN rail
Depth:
72 mm
Ambient Air Temperature For Storage:
-40-80 °C
Product Certifications:
IEC || CCC || CSA || UL
Range:
Multi9
Circularity Profile:
N/A
Width:
36 mm
Device Application:
distribution
Suitability For Isolation:
yes EN/IEC 60947-2
Curve Code:
D
Product Name:
Multi9 C60
Electrical Durability:
10000 cycles
Trip Unit Technology:
thermal-magnetic
Mounting Mode:
clip-on
[Ics] Rated Service Breaking Capacity:
4.5 kA 75 % GB 14048.2 - 240 V AC || 7.5 kA 75 % GB 14048.2 || 15 kA 75 % GB 14048.2 || 4.5 kA 75 % EN/IEC 60947-2 - 125 V DC || 7.5 kA 75 % EN/IEC 60947-2 - 440 V AC || 15 kA 75 % EN/IEC 60947-2 - 415 V AC
Connections - Terminals:
ring terminal top or bottom)
[Ui] Rated Insulation Voltage:
500 V AC EN/IEC 60947-2
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Mechanical Durability:
20000 cycles
Color:
Gray
[Ue] Rated Operational Voltage:
240 V AC 50/60 Hz || 415 V AC 50/60 Hz || 440 V AC 50/60 Hz
Contact Position Indicator:
yes
Device Short Name:
C60BPR
Tightening Torque:
2-2 N.m top or bottom
Standards:
EN/IEC 60947-2 || GB 14048.2 || UL 489 || CSA C22.2 No 5
Mercury Free:
Yes
Network Type:
DC || AC
Magnetic Tripping Limit:
12 x In +/- 20 % AC || 17 x In +/- 20 % DC
Provision For Padlocking:
padlockable
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Operating Altitude:
0...6561.68 ft (0...2000 m)
Breaking Capacity:
6 kA Icu 440 V AC EN/IEC 60947-2 || 10 kA Icu 415 V AC EN/IEC 60947-2 || 20 kA Icu 240 V AC EN/IEC 60947-2 || 6 kA Icu 440 V AC GB 14048.2 || 10 kA Icu 415 V AC GB 14048.2 || 20 kA Icu 240 V AC GB 14048.2 || 14 kA AIR 240 V AC UL 489 || 10 kA AIR 125
Product Or Component Type:
miniature circuit-breaker
Rohs Exemption Information:
Yes
[Uimp] Rated Impulse Withstand Voltage:
6 kVEN/IEC 60947-2
Line Rated Current:
2 A 25 °C EN/IEC 60947-2
Halogen Content Performance:
Halogen free product
Height:
127 mm
Earth-Leakage Protection:
without
Pollution Degree:
3 EN/IEC 60947-2
Eu Rohs Directive:
Compliant with Exemptions
Sustainable Offer Status:
Green Premium product
