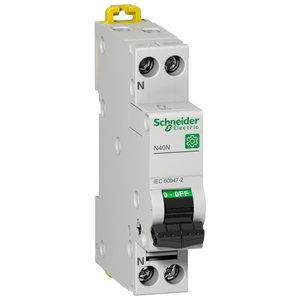

Schneider Electric M9P22603 Multi9 N40N 1P-N 3A C 10Ka 240V Mcb
This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 3A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 240VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. The weight is 0.115kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
- Ambient Air Temperature For Storage:
- -40-70 °C
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
- Rohs Exemption Information:
- Yes
- Depth:
- 78 mm
- Trip Unit Technology:
- thermal-magnetic
- Contact Position Indicator:
- yes
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Color:
- Gray
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Device Short Name:
- N40N
- Device Application:
- distribution
- Control Type:
- toggle
- Mounting Mode:
- clip-on
- Halogen Content Performance:
- Halogen free product
- Network Frequency:
- 50/60 Hz
- Breaking Capacity:
- 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP1801003_V2
- Network Type:
- AC
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Mounting Support:
- DIN rail
- Height:
- 81 mm
- Product Or Component Type:
- miniature circuit-breaker
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral
- Limitation Class:
- 3 EN/IEC 60947-2
- Tightening Torque:
- 2-2 N.m top or bottom
- Provision For Padlocking:
- padlockable
- 9 Mm Pitches:
- 2
- Width:
- 18 mm
- Mechanical Durability:
- 20000 cycles
- Circularity Profile:
- N/A
- Poles Description:
- 1P + N
- Number Of Protected Poles:
- 1
- Mercury Free:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kVEN/IEC 60947-2
- Sustainable Offer Status:
- Green Premium product
- Standards:
- EN/IEC 60947-2
- Eu Rohs Directive:
- Compliant with Exemptions
- Neutral Position:
- left
- Curve Code:
- C
- Wire Stripping Length:
- 13 mm for top or bottom connection
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Range:
- Multi9
- Electrical Durability:
- 20000 cycles
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Pollution Degree:
- 3 EN/IEC 60947-2
- Line Rated Current:
- 3 A 50 °C EN/IEC 60947-2
- Relative Humidity:
- 95-95 % 55-55 °C
- Tropicalisation:
- 2 IEC 60068-1
- Net Weight:
- 0.115 kg
- Product Name:
- Multi9 N40
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Earth-Leakage Protection:
- separate block
- Ambient Air Temperature For Operation:
- -25-70 °C
- Connections - Terminals:
- tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
- Local Signalling:
- ON/OFF indication
