Schneider Electric M9P22604 Multi9 N40N 1P-N 4A C 10Ka 240V Mcb
Schneider Electric
$186.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

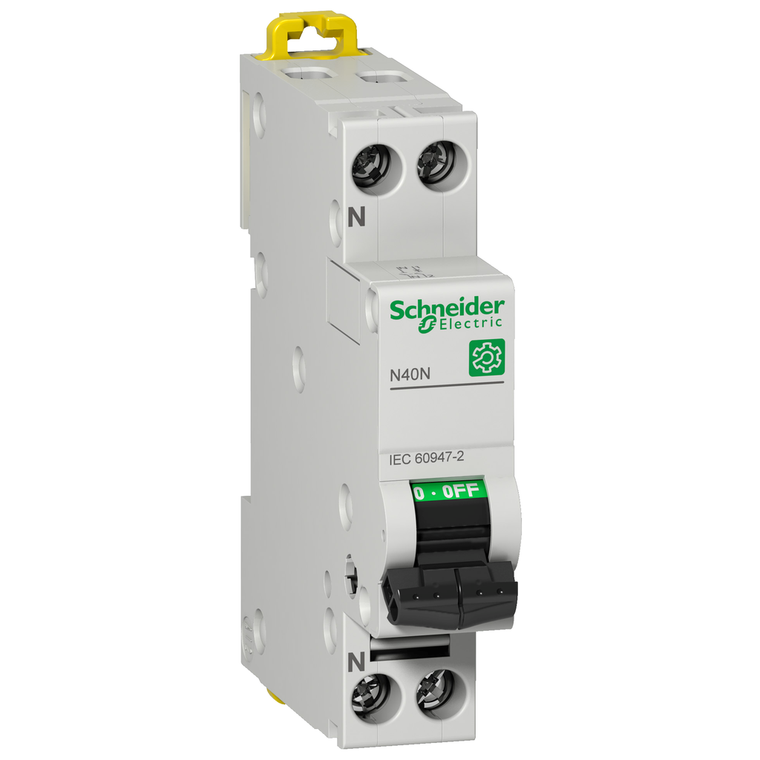

Schneider Electric M9P22604 Multi9 N40N 1P-N 4A C 10Ka 240V Mcb
This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 1P+N circuit breaker with 1 protected pole, 4A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 240VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 78mm. The weight is 0.115kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
- Sustainable Offer Status:
- Green Premium product
- Trip Unit Technology:
- thermal-magnetic
- Eu Rohs Directive:
- Compliant with Exemptions
- Line Rated Current:
- 4 A 50 °C EN/IEC 60947-2
- Tightening Torque:
- 2-2 N.m top or bottom
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Sustainable Packaging:
- Yes
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kVEN/IEC 60947-2
- Ambient Air Temperature For Operation:
- -25-70 °C
- Curve Code:
- C
- Height:
- 81 mm
- Standards:
- EN/IEC 60947-2
- Earth-Leakage Protection:
- separate block
- Depth:
- 78 mm
- Circularity Profile:
- N/A
- Ambient Air Temperature For Storage:
- -40-70 °C
- Number Of Protected Poles:
- 1
- [Ue] Rated Operational Voltage:
- 240 V AC 50/60 Hz between phase and neutral
- Network Frequency:
- 50/60 Hz
- Poles Description:
- 1P + N
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Pollution Degree:
- 3 EN/IEC 60947-2
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Device Application:
- distribution
- Local Signalling:
- ON/OFF indication
- Halogen Content Performance:
- Halogen free product
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Electrical Durability:
- 20000 cycles
- Limitation Class:
- 3 EN/IEC 60947-2
- Net Weight:
- 0.115 kg
- Product Or Component Type:
- miniature circuit-breaker
- Network Type:
- AC
- Tropicalisation:
- 2 IEC 60068-1
- Provision For Padlocking:
- padlockable
- Environmental Disclosure:
- ENVPEP1801003_V2
- Neutral Position:
- left
- Breaking Capacity:
- 10 kA Icu 240 V AC 50/60 Hz between phase and neutral EN/IEC 60947-2
- Mounting Support:
- DIN rail
- Rohs Exemption Information:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz
- 9 Mm Pitches:
- 2
- Wire Stripping Length:
- 13 mm for top or bottom connection
- Mercury Free:
- Yes
- Control Type:
- toggle
- Color:
- Gray
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Relative Humidity:
- 95-95 % 55-55 °C
- Mounting Mode:
- clip-on
- Mechanical Durability:
- 20000 cycles
- Connections - Terminals:
- tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
- Device Short Name:
- N40N
- Product Name:
- Multi9 N40
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Range:
- Multi9
- Contact Position Indicator:
- yes
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Width:
- 18 mm
