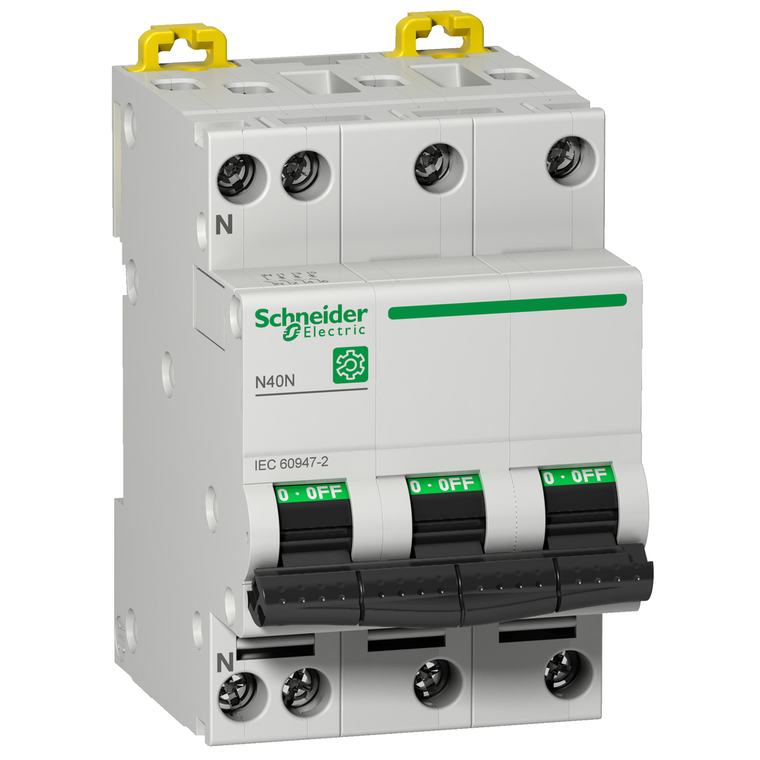

Schneider Electric M9P22710 Multi9 N40N 3P-N 10A C 10Ka 415V Mcb

(No reviews yet) Write a Review
SKU:
M9P22710
UPC:
3606480572333
Condition:
New
Relative Humidity:
95-95 % 55-55 °C
9 Mm Pitches:
6
Number Of Protected Poles:
3
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Network Frequency:
50/60 Hz
Tightening Torque:
2-2 N.m top or bottom
Net Weight:
0.322 kg
Tropicalisation:
2 IEC 60068-1
Trip Unit Technology:
thermal-magnetic
Mounting Support:
DIN rail
Line Rated Current:
10 A 50 °C EN/IEC 60947-2
Environmental Disclosure:
ENVPEP100611EN
Sustainable Offer Status:
Green Premium product
Eu Rohs Directive:
Compliant with Exemptions
[Ics] Rated Service Breaking Capacity:
7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz
China Rohs Regulation:
Product out of China RoHS scope. Substance declaration for your information.
Neutral Position:
left
Mounting Mode:
clip-on
Earth-Leakage Protection:
separate block
Control Type:
toggle
Product Or Component Type:
miniature circuit-breaker
Magnetic Tripping Limit:
8.5 x In +/- 20 % AC
Ip Degree Of Protection:
IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
Range:
Multi9
Mercury Free:
Yes
Contact Position Indicator:
yes
Ambient Air Temperature For Storage:
-40-70 °C
Width:
54 mm
Depth:
78 mm
Product Name:
Multi9 N40
Halogen Content Performance:
Halogen free product
Provision For Padlocking:
padlockable
Height:
81 mm
Limitation Class:
3 EN/IEC 60947-2
Breaking Capacity:
10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2
Curve Code:
C
Device Application:
distribution
Connections - Terminals:
tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
[Uimp] Rated Impulse Withstand Voltage:
4 kVEN/IEC 60947-2
Mechanical Durability:
20000 cycles
Standards:
EN/IEC 60947-2
Local Signalling:
ON/OFF indication
[Ui] Rated Insulation Voltage:
500 V AC 50/60 Hz EN/IEC 60947-2
Network Type:
AC
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Pollution Degree:
3 EN/IEC 60947-2
Electrical Durability:
20000 cycles
Device Short Name:
N40N
Circularity Profile:
N/A
[Ue] Rated Operational Voltage:
415 V AC 50/60 Hz between phases
Color:
Gray
Suitability For Isolation:
yes EN/IEC 60947-2
Poles Description:
3P + N
Rohs Exemption Information:
Yes
Wire Stripping Length:
13 mm for top or bottom connection
Ambient Air Temperature For Operation:
-25-70 °C
Brochure:
View
Datasheet:
View
$558.00

Description

This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 3P+N circuit breaker with 3 protected poles, 10A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 415VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 78mm. The weight is 0.322kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
