Schneider Electric M9P22720 Multi9 N40N 3P-N 20A C 10Ka 415V Mcb
Schneider Electric
$558.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

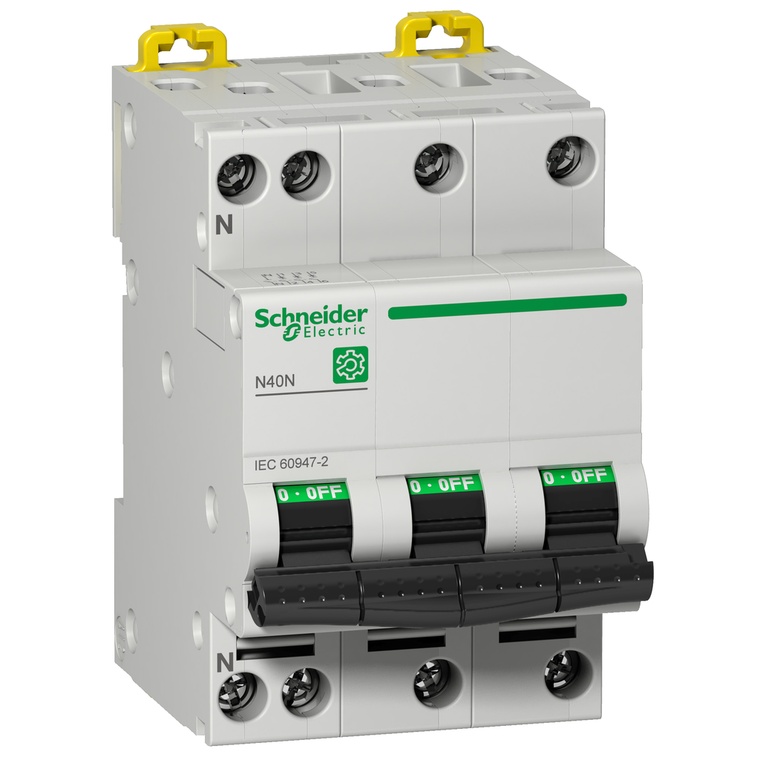

Schneider Electric M9P22720 Multi9 N40N 3P-N 20A C 10Ka 415V Mcb
This Multi9 N40N is a low voltage miniature circuit breaker (MCB). It is a 3P+N circuit breaker with 3 protected poles, 20A rated current and C tripping curve. The Icu rated short circuit breaking capacity is up to 10kA at 415VAC conforming to EN/IEC 60898-1 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 20000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 415VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 4kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 6 pitches of 9mm. Pollution degree is 3. The product colour is light grey (RAL7035). The dimensions are (W) 54mm x (H) 81mm x (D) 78mm. The weight is 0.322kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -25°C to 70°C. The storage temperature is -40°C to 70°C.
- Height:
- 81 mm
- Rohs Exemption Information:
- Yes
- [Ics] Rated Service Breaking Capacity:
- 7.5 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz
- Mercury Free:
- Yes
- Device Application:
- distribution
- Mounting Mode:
- clip-on
- Line Rated Current:
- 20 A 50 °C EN/IEC 60947-2
- Width:
- 54 mm
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kVEN/IEC 60947-2
- Poles Description:
- 3P + N
- Breaking Capacity:
- 10 kA Icu 415 V AC 50/60 Hz between phases EN/IEC 60947-2
- Limitation Class:
- 3 EN/IEC 60947-2
- [Ue] Rated Operational Voltage:
- 415 V AC 50/60 Hz between phases
- 9 Mm Pitches:
- 6
- Control Type:
- toggle
- Pollution Degree:
- 3 EN/IEC 60947-2
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Relative Humidity:
- 95-95 % 55-55 °C
- Tropicalisation:
- 2 IEC 60068-1
- Contact Position Indicator:
- yes
- Local Signalling:
- ON/OFF indication
- Range:
- Multi9
- Curve Code:
- C
- Trip Unit Technology:
- thermal-magnetic
- Ambient Air Temperature For Operation:
- -25-70 °C
- Number Of Protected Poles:
- 3
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- Product Or Component Type:
- miniature circuit-breaker
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Network Frequency:
- 50/60 Hz
- Network Type:
- AC
- Neutral Position:
- left
- Magnetic Tripping Limit:
- 8.5 x In +/- 20 % AC
- Device Short Name:
- N40N
- Wire Stripping Length:
- 13 mm for top or bottom connection
- Connections - Terminals:
- tunnel type terminal top or bottom) 0.75-16 mm² - rigid || tunnel type terminal top or bottom) 0.33-10 mm² - flexible || tunnel type terminal top or bottom) 0.33-10 mm² - flexible with ferrule
- [Ui] Rated Insulation Voltage:
- 500 V AC 50/60 Hz EN/IEC 60947-2
- Environmental Disclosure:
- ENVPEP100611EN
- Electrical Durability:
- 20000 cycles
- Depth:
- 78 mm
- Color:
- Gray
- Net Weight:
- 0.322 kg
- Sustainable Offer Status:
- Green Premium product
- Halogen Content Performance:
- Halogen free product
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Name:
- Multi9 N40
- Mounting Support:
- DIN rail
- Tightening Torque:
- 2-2 N.m top or bottom
- Suitability For Isolation:
- yes EN/IEC 60947-2
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Earth-Leakage Protection:
- separate block
- Mechanical Durability:
- 20000 cycles
- Provision For Padlocking:
- padlockable
- Eu Rohs Directive:
- Compliant with Exemptions
- Circularity Profile:
- N/A
- Standards:
- EN/IEC 60947-2
- Brochure:
- View
- Datasheet:
- View
