Schneider Electric M9R12425 Multi9 Gfp 4P 25A 86Ma A-Si 480Y/277V
Schneider Electric
$648.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric M9R12425 Multi9 Gfp 4P 25A 86Ma A-Si 480Y/277V

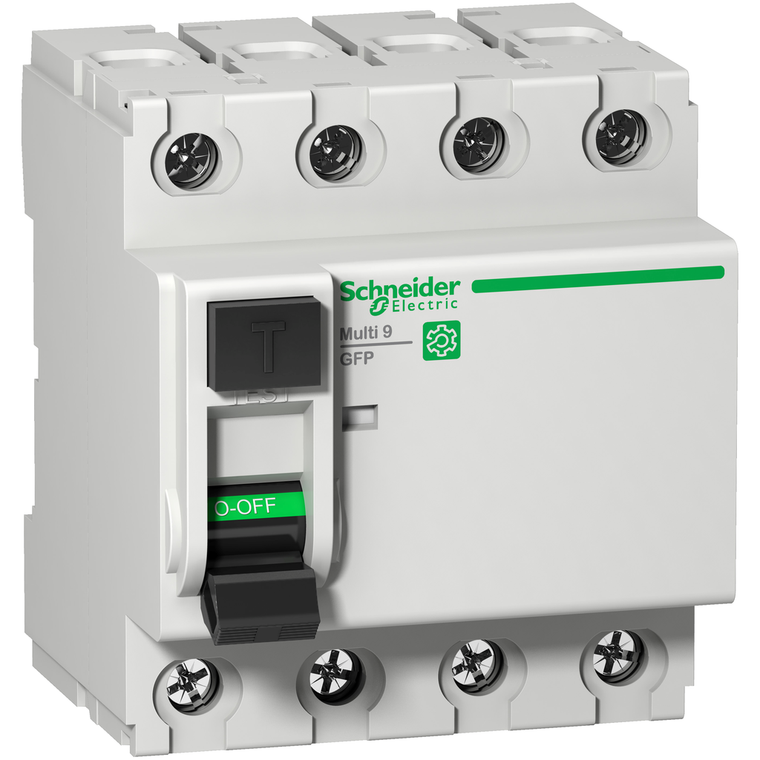

This Multi GFP product is a residual current circuit breaker (RCCB). It is a 4P circuit breaker with 25A In rated current, 86mA earth leakage sensitivity and A-SI type protection class. It protects persons against electric shock by direct contact. It also protects installations against fire risks. The tripping upon fault is indicated by a red mechanical status indicator on the front panel. The A-SI type offers enhanced immunity to electrical disturbances. This product is dedicated to original equipment manufacturers (OEM) and control panel builders in indisutrial and tertiary buildings. It is compliant with IEC/EN 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. It has a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 6kV. The frequency is 50Hz or 60Hz. It is DIN rail mountable. The width in 9mm pitches is 8. The product colour is light grey (RAL7035). The dimensions are (W) 72mm x (H) 81mm x (D) 60mm. The weight is 0.45kg. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 70°C.
- Network Frequency:
- 50/60 Hz
- Standards:
- EN/IEC 61008-1 || UL 1053
- Residual Current Tripping Technology:
- voltage independent
- Connections - Terminals:
- tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible || tunnel type terminals top or bottom) 1-35 mm² AWG 18...AWG 2) - rigid || tunnel type terminals top or bottom) 1-25 mm² AWG 18...AWG 3) - flexible with ferrule
- Ambient Air Temperature For Operation:
- -25-60 °C
- China Rohs Regulation:
- Product out of China RoHS scope. Substance declaration for your information.
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kVEN/IEC 61008-1
- [Ue] Rated Operational Voltage:
- 415 V AC 50 Hz || 480Y/277 V AC 60 Hz
- Product Certifications:
- IEC || UL
- Rohs Exemption Information:
- Yes
- Depth:
- 60 mm
- Locking Options Description:
- padlocking in OFF position
- Earth-Leakage Sensitivity:
- 86 mA UL 1053 || 100 mA EN/IEC 61008-1
- Mounting Mode:
- clip-on
- Tightening Torque:
- 3.5-3.5 N.m top or bottom
- Product Name:
- Multi9 GFP
- Device Short Name:
- GFP
- Net Weight:
- 0.45 kg
- Device Application:
- distribution
- Color:
- Gray
- Width:
- 72 mm
- Mounting Support:
- DIN rail
- Eu Rohs Directive:
- Compliant with Exemptions
- Local Signalling:
- ON, OFF, fault trip
- Earth-Leakage Protection Time Delay:
- instantaneous
- Mechanical Durability:
- 20000 cycles
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mercury Free:
- Yes
- Height:
- 81 mm
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electromagnetic Compatibility:
- 8/20 µs impulse withstand, 3000 A EN/IEC 61008-1
- Wire Stripping Length:
- 14 mm for top or bottom connection
- Earth-Leakage Protection Class:
- type A-SI (Super Immunised)
- Rated Conditional Short-Circuit Current:
- Inc 10 kA 100 A gG
- 9 Mm Pitches:
- 8
- [Ui] Rated Insulation Voltage:
- 440 V AC 50/60 Hz
- Product Or Component Type:
- residual current circuit breaker (RCCB)
- Tropicalisation:
- 2 IEC 60068-1
- Control Type:
- toggle
- Utilisation Category:
- AC-23A EN/IEC 61008-1
- Ip Degree Of Protection:
- IP20 conforming to IEC 60529 || IP40 (modular enclosure) conforming to IEC 60529
- Rated Breaking And Making Capacity:
- Idm 1500 A EN/IEC 61008-1
- Contact Position Indicator:
- yes
- Line Rated Current:
- 25 A 40 °C EN/IEC 61008-1
- Range:
- Multi9
- Neutral Position:
- left
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pollution Degree:
- 3
- Relative Humidity:
- 95-95 % 55-55 °C
- Poles Description:
- 4P
- Network Type:
- AC
- Brochure:
- View
- Datasheet:
- View
